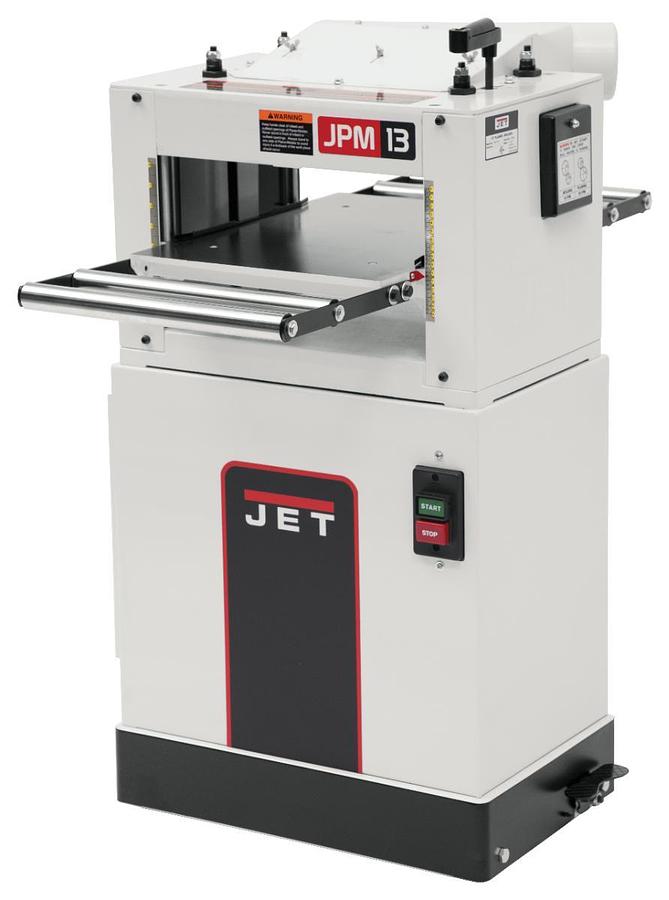

JPM-13CS, 13" Closed Stand Planer / Molder, 1-1/2HP, 1Ph, 115/230V

or
Call (954)444-4004

Description

The JET JPM-13CS 13" Closed Stand Planer / Molder boasts a totally enclosed fan-cooled 1.5 HP motor which uses two matched V-belts to deliver smooth, consistent power to the cutter head. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish in either application. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.


  • Exclusive angled 4" dust port keeps the dust hose out of the way while providing efficient chip and dust removal
  • Four precision-ground column design feature adds stability when raising and lowering the table
  • Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
  • Molding cutter head accommodates over 40 standard molding cutter sets; most 2" or smaller heads can be installed without removing the planning knives to save you set-up time
  • Top-mounted height adjustment handle is easy to use for quick table height changes
  • Two speed gear box has feed rates set for optimum planing and molding results

    • Show All

    Specifications

    ManufacturerJettools
    ModelJPM-13CS
    ConditionNew
    Stock NumberJT9-708524
    Cutterhead Speed (RPM)4500.0000
    Dust Port Outside Diameter (In.)4
    Feed Rate - Molding (FPM)10
    Maximum Planing Thickness (In.)6-1/8
    Motor Amps15/7.5
    Motor Power (HP)1-1/2
    Number of Knives3
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Style (Type)Planer/Molder
    Warranty5 Year
    Gross Weight258.0
    Net weight258.0
