JWBS-20-3, 20" Bandsaw, 3HP, 230V

or
Call (954)444-4004

Description

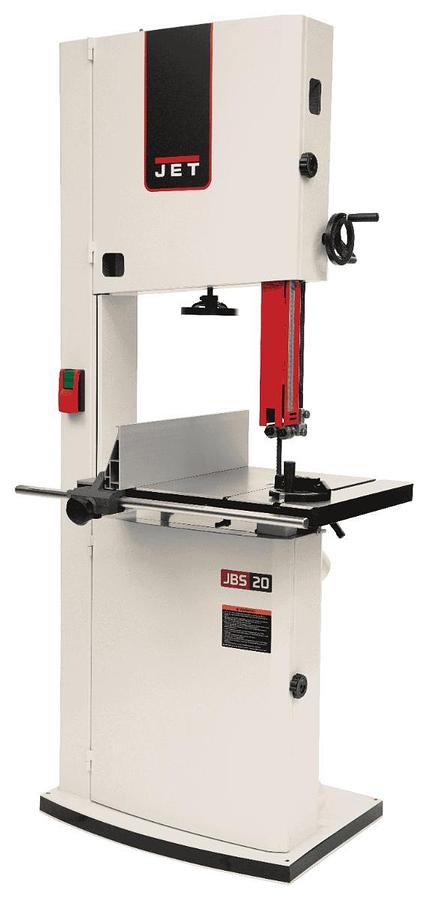

Designed to perform, the JET 20” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted for front blade removal and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.


  • Blade tracking window provides clear view of blade during tracking
  • Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy
  • Cast iron trunnion for maximum support and stability
  • Conveniently located dual 4" dust collection ports catch dust and chips at the source
  • Easy-to-read blade tension scale can be viewed through upper door window
  • Heavy duty tensioning with quick release and three settings: full tension, partial tension, and full release
  • Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
  • Round table insert features leveling screws for precise adjustment
  • Single knob adjustment simplifies the blade tracking process
  • Table tilts 5° left and 45° right to accommodate a wide variety of cuts

    • Show All

    Specifications

    ManufacturerJettools
    ModelJWBS-20-3
    ConditionNew
    Stock NumberJT9-714800
    Warranty5 Year
    Band Saw Size/Wheel Diameter (In.)20-1/4
    Minimum Saw Blade Width (In.)1/8
    Cutting Capacity Height (In.)16
    Cutting Capacity Width (In.)20.0000
    Dust Collection Minimum CFM Required (CFM)400
    Table Size (L x W) (In.)27-1/4 x 20 x 1-5/8
    Motor Power (HP)3
    Recommended Circuit Size (Amps.)30
    Motor Amps12
    Table Height from Floor (In.)37
    Prop 65Cancer and Reproductive Harm
    Net weight588.0
    Gross Weight660.0
