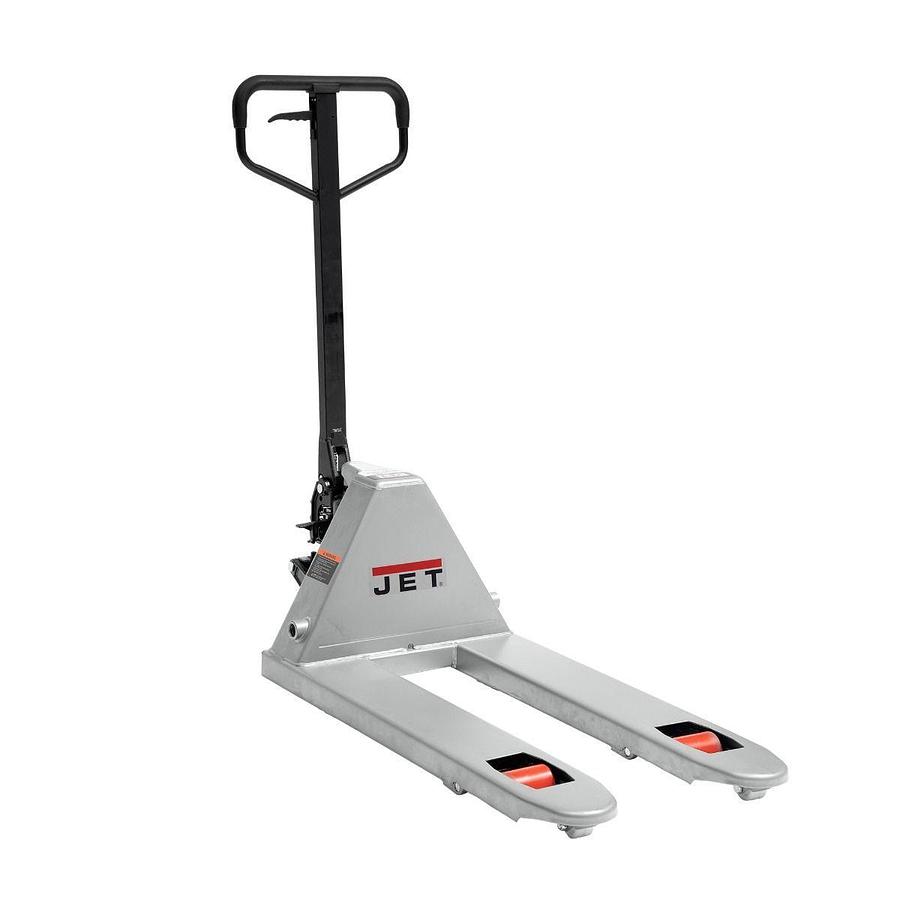

PT-2036JB, 20" x 36" 5,500 LB Capacity Pallet Truck

or
Call (954)444-4004

Description

JET® J Series Pallet Trucks are available in 6 different configurations. Each JET J Series Pallet Truck has a low profile of 2-1/2 inches, varying widths of 16 to 27 inches, and multiple lengths from 36 to 48 inches. High quality welded steel construction allows for capacities up to 5,000 pounds. The 180 degree turning radius increases maneuverability and the easy-to-use fingertip controls permit single handed operation. JET J Series Pallet Trucks are built to handle heavy lifting.


  • 2/12 inch low profile allows for easy engagement of pallets
  • Lower material in a controlled decent with either hand or foot control for operator convenience
  • Overload Protection prevents lifting loads past maximum capacity
  • Polyurethane 7-1/8 x 2 inch steer wheels for non marking of floors and quieter rolling
  • Pumps designed for any industrial environment

    • Show All

    Specifications

    ManufacturerJettools
    ModelPT-2036JB
    ConditionNew
    Stock NumberJT9-161004
    Capacity (Lbs.)5500
    Fork Width (In.)6-1/3
    Load Wheel Size (OD x W) (In.)2-1/2 x 3-11/16
    Lowered Height (In.)2.56
    Maximum Height (In.)6-11/16
    Overall Dimensions (L x W x H) (In.)51 x 20-1/2 x 45-1/8
    Overall Fork Dimensions (L x W) (In.)36 x 20-1/2
    Prop 65Cancer and Reproductive Harm
    Steer Wheel Size (In.)7-1/8 X 2
    Turning Radius (Deg)180
    WarrantyLimited
    Gross Weight143.0
    Net weight138.0
