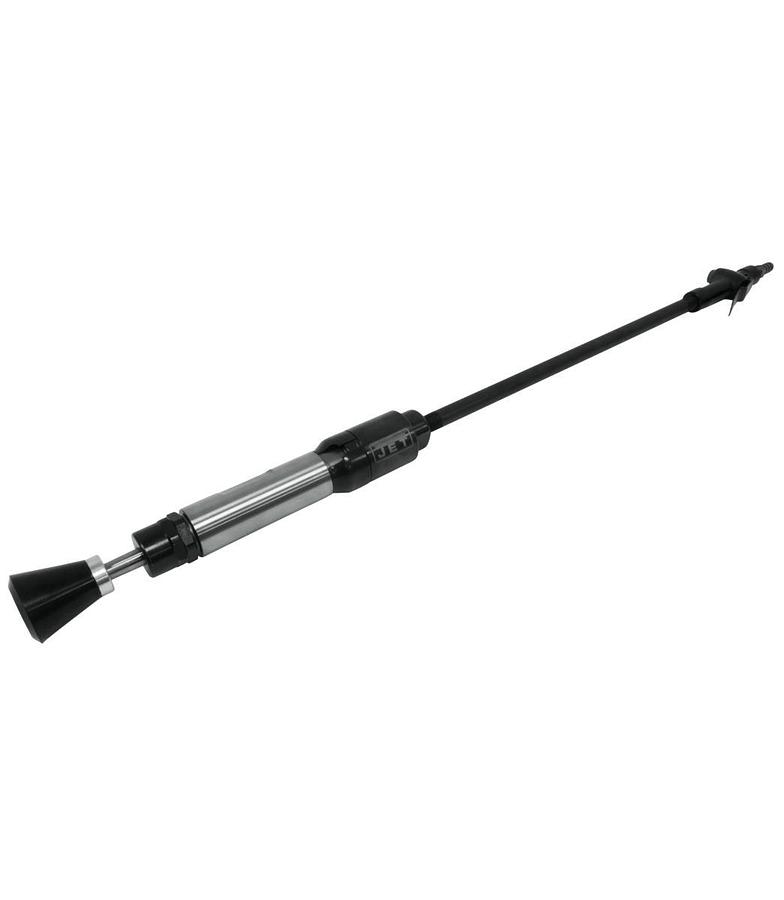

JCT-1603, Floor Sand Rammer / Backfill Tamper

JET® Sand Rammers are available in bench and floor models. The bench models deliver fast, powerful blows for ramming small, medium and large forms. The floor models deliver maximum power with slow, powerful blows that efficiently and quickly compact all types of backfill. Each model is ergonomically designed providing greater ease of handling with reduced operator fatigue.


  • All Steel cylinder housing for increased durability
  • Heavy-Duty, industry proven valve design
  • Highly efficient way to quickly compact backfill and sand
  • Maximum power with slow, powerful blows for compacting large sand molds
  • Backed by the industry leading 2-Year Warranty

    • Show All

    Specifications

    ManufacturerJettools
    ModelJCT-1603
    ConditionNew
    Stock NumberJT9-550603
    Air Consumption (CFM)17.0000
    Air Hose (ID/In.)3/8
    Air Inlet (NPT)3/8
    Air Pressure (PSI)90
    Blows Per Minute1000
    Bore Size (In.)6/7
    Butt Diameter (In.)2-3/64
    Overall Length (In.)35-1/4
    Piston Stroke (In.)2-9/16
    Prop 65Cancer and Reproductive Harm
    Taper (Deg.)1.38
    Vibration Value (m/s²)32.0000
    Warranty2 Year
    Gross Weight9.27
    Net weight8.9
