JCT-1601, Benchtop Sand Rammer

or
Call (954)444-4004

Description

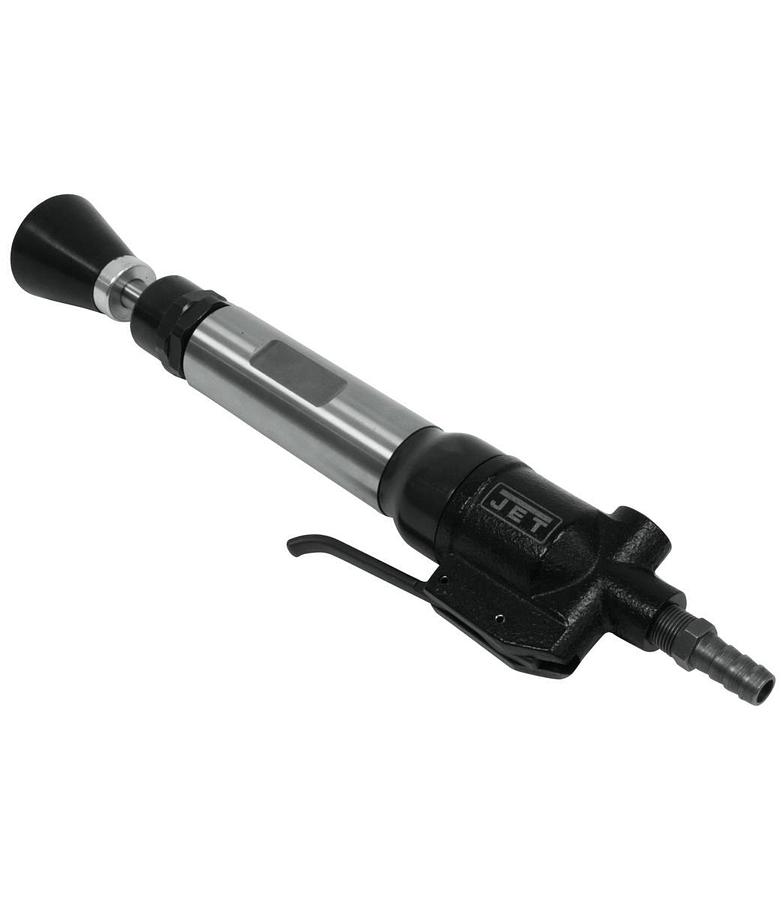

JET JCT-1601 Benchtop Pneumatic Sand Rammer (550601)

JET® Sand Rammers are available in bench and floor models. The bench models deliver fast, powerful blows for ramming small, medium and large forms. The floor models deliver maximum power with slow, powerful blows that efficiently and quickly compact all types of backfill. Each model is ergonomically designed providing greater ease of handling with reduced operator fatigue.


  • All Steel cylinder housing for increased durability
  • Fast powerful blows for compacting small, medium, and large sand molds
  • Front end seal protects the piston from excessive dirt and debris extending tool life
  • Heavy-Duty, industry proven valve design
  • Backed by the industry leading 2-Year Warranty

    • Show All

    Specifications

    ManufacturerJettools
    ModelJCT-1601
    ConditionNew
    Stock NumberJT9-550601
    Air Consumption (CFM)17.0000
    Air Hose (ID/In.)3/8
    Air Inlet (NPT)3/8
    Air Pressure (PSI)90
    Blows Per Minute1000
    Bore Size (In.)6/7
    Butt Diameter (In.)2-3/64
    Overall Length (In.)14-1/2
    Piston Stroke (In.)2-9/16
    Prop 65Cancer and Reproductive Harm
    Taper (Deg.)1.38
    Vibration Value (m/s²)33.8400
    Warranty2 Year
    Gross Weight7.5
    Net weight6.0
