JAT-630, 3/8" Reversible Angle Drill

or
Call (954)444-4004

Description

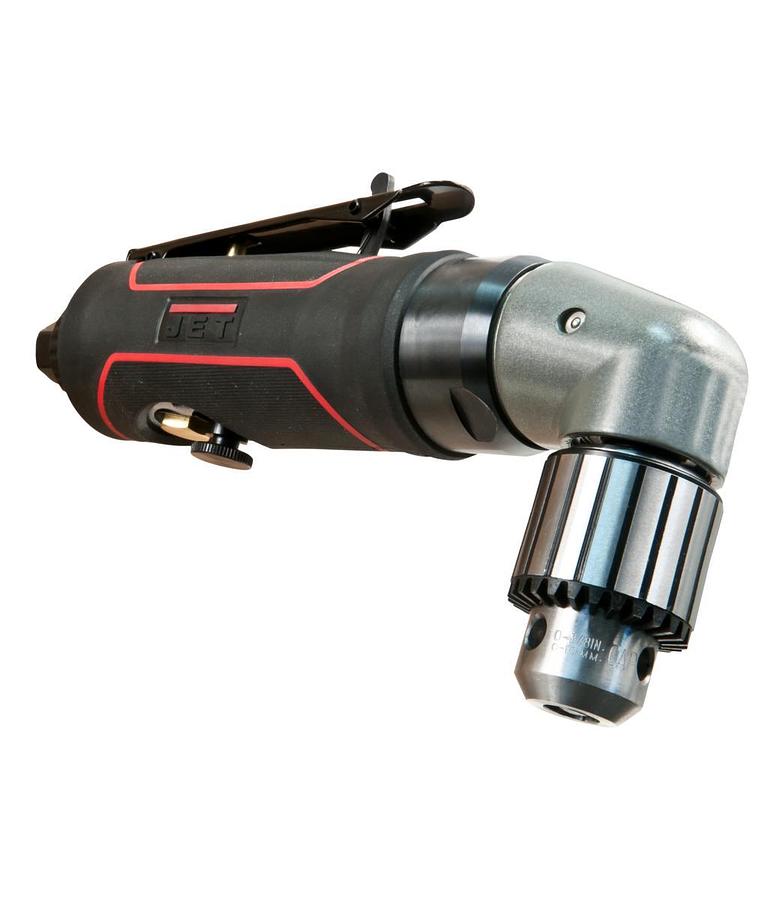

JET JAT-630, 3/8-Inch Pneumatic Angle Drill (505630)

The JAT-620 is 1/2" composite housing angled drill build with 1,200 rpm of speed for the Transportation and MRO markets with reversible design and industrial keyed chuck


  • Bottom-mounted, forward/reverse switch locks in place
  • Ergonomically Designed Grip
  • Head rotates 360° for increased versatility
  • Industrial Jacobs’s keyed chuck efficiently transfers torque when needed
  • Low profile angled head for work in tight spots
  • Rugged, ball-bearing design for durability
  • Variable-speed trigger for precise speed control

    • Show All

    Specifications

    ManufacturerJettools
    ModelJAT-630
    ConditionNew
    Stock NumberJT9-505630
    Air Consumption (CFM)4.0000
    Air Hose (ID/In.)3/8
    Air Inlet (NPT)1/4
    Air Pressure (PSI)90
    Chuck Size (In.)3/8
    Free Speed (RPM)1200.0000
    Horse Power (HP)0.5000
    Min. Air Hose (ID)3/8
    Overall Length (In.)8
    Prop 65Cancer and Reproductive Harm
    Sound Power (db) (A)97.0000
    Sound Pressure (db) (A)90.0000
    Spindle Thread (In./TPI)3/8"-24 UNF
    Vibration Value (m/s²)0.5000
    Warranty2 Year
    Gross Weight2.8
    Net weight2.5
