JAT-483, 4", 1 HP Extended Cut-Off Tool

or
Call (954)444-4004

Description

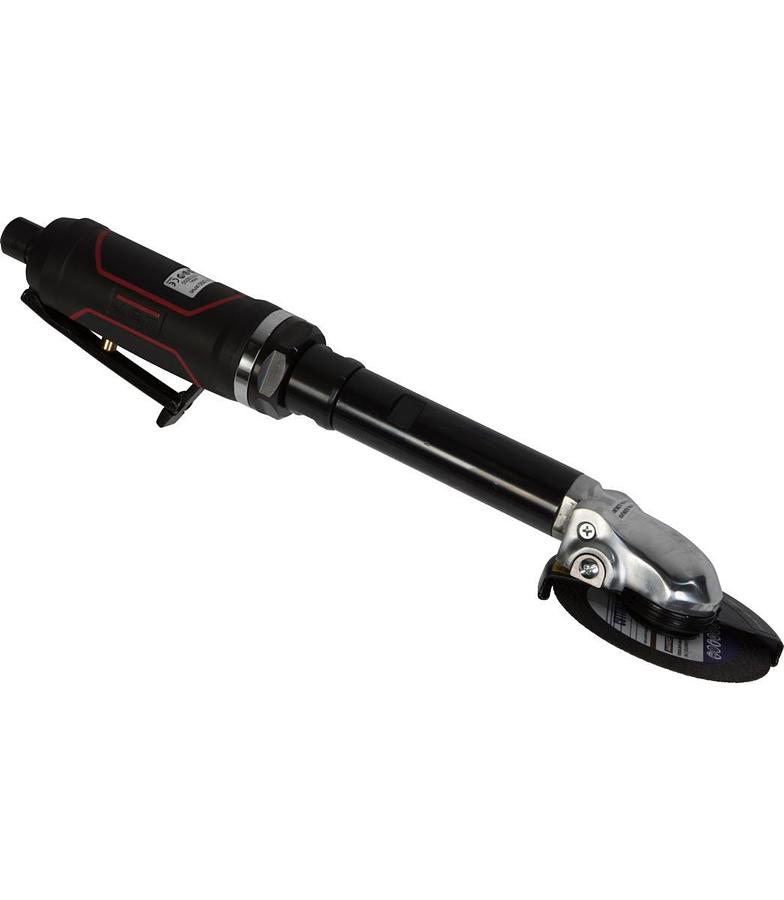

JET JAT-483, 4-Inch Pneumatic Extended Cut-Off Tool (505483)

The JAT-483 4'' Extended Cut-Off Tool will exceed your expectations for power, comfort, reach, and durability. With its 1hp motor driving this tool and its extended shaft you won't have to worry about reaching the work or stalling when you get there.


  • 360° Rotating air inlet keeps the air hose tangle free for added safety
  • Easy-to-use spindle lock system holds the cutting wheel when choosing one of 11 adjustable positions of the swivel guard
  • Impact resistant composite housings reduce tool weight and user fatigue.
  • Precision spiral bevel gears transfer torque and speed to spindle for added durability
  • Right-angle head design for reaching tight or angled grinding jobs
  • Tapered angle gear housing allows greater visibility of targeted work area
  • Upgraded Full, 1 HP motors provide the heavy-duty power needed for harsh industrial environments
  • Variable-speed throttle ramps up to maximum RPM
  • Variable-speed throttle ramps up to maximum RPM, while the safety lock prevents accidental engagement

    • Show All

    Specifications

    ManufacturerJettools
    ModelJAT-483
    ConditionNew
    Stock NumberJT9-505483
    Air Consumption (CFM)5.3000
    Air Hose (ID/In.)3/8
    Air Inlet (NPT)1/4
    Air Pressure (PSI)90
    Body TypeFull, Extended
    Free Speed (RPM)14000.0000
    Horse Power (HP)1.0000
    Min. Air Hose (ID)3/8
    Overall Length (In.)14.6
    Prop 65Cancer and Reproductive Harm
    Sound Power (db) (A)96.5000
    Sound Pressure (db) (A)85.5000
    Spindle Thread (In./TPI)3/8"-24 UNF
    Vibration Value (m/s²)3.8000
    Warranty2 Year
    Wheel Size (In.)4
    Gross Weight4.2
    Net weight3.7
