Description

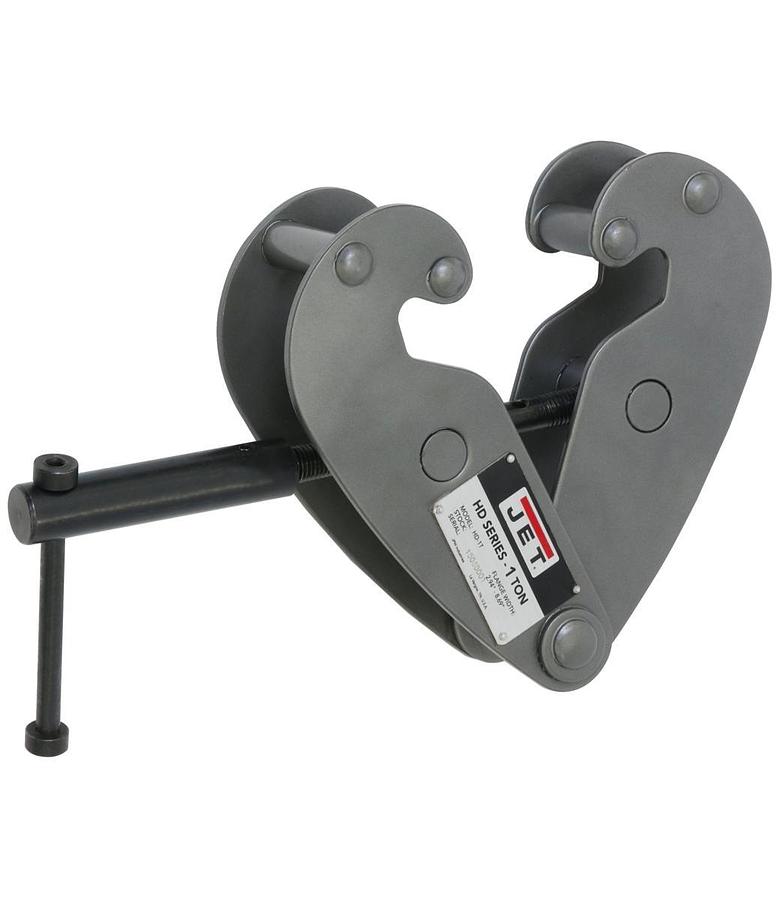

HD-1T, 1-Ton Heavy-Duty Wide Beam Clamp

JET HD Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide. Each JET Beam Clamp Jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 Ton capacities, the HD Series has a greater beam flange width for wider beams.


  • Clamp jaw is designed to distribute the load away from the beam flange edge
  • Clamp jaw is designed to distribute the load away from the beam flange edge, increasing safety
  • Complies with ANSI / ASME B30.17 and B30.20 standards
  • Load tested to 125% of capacity with certificate
  • Used for quick mounting of a hoist on a broad range of beams up to 8-2/3 inches wide for increased versatility
  • Welded all-steel frame and powder coat finish
  • Welded all-steel frame and powder coat finish provide maximum durability and protection

    • Show All

    Specifications

    ManufacturerJettools
    ModelHD-1T
    ConditionNew
    Stock NumberJT9-202710
    Capacity (Lbs.)2200
    Load Capacity (Metric Tons)1
    Load Capacity (Tons)1
    Maximum Beam Flange Width (In.)8-2/3
    Minimum Beam Flange Width (In.)3
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Gross Weight11.2
    Net weight11.0
