JBC-2, 2-Ton Beam Clamp

or
Call (954)444-4004

Description

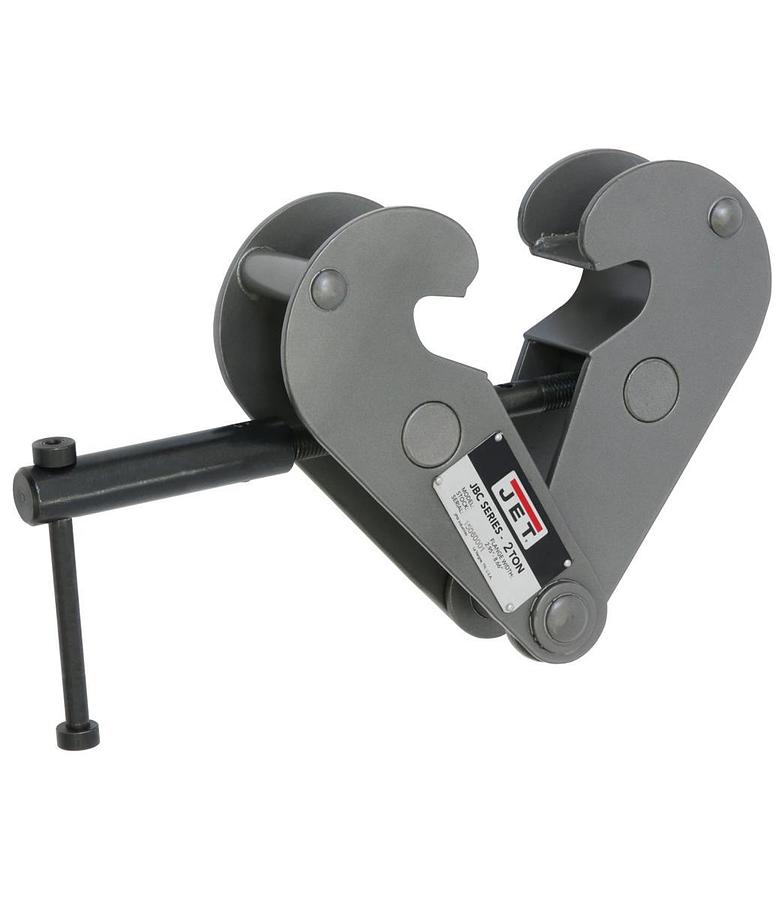

JET JBC-2 2-Ton Beam Clamp (252720)

JET JBC Series features a more robust construction for increased durability and longer life in demanding industrial environments. The JBC Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 10 inches wide. Each JET Beam Clamp Jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams.


  • Clamp jaw is designed to distribute the load away from the beam flange edge
  • Clamp jaw is designed to distribute the load away from the beam flange edge, increasing safety
  • Complies with ANSI / ASME B30.17 and B30.20 standards
  • Larger, thicker diameter pins for increased durability and life
  • Load tested to 125% of capacity with certificate
  • Robust construction for increased durability and longer life in demanding industrial environments
  • Used for quick mounting of a hoist on a broad range of beams up to 10-5/8 inches wide for increased versatility
  • Welded all-steel frame and powder coat finish
  • Welded all-steel frame and powder coat finish provide maximum durability and protection
  • Welded, enclosed pockets provide greater stability and durability where the beam clamp attaches to the beam/structure

    • Show All

    Specifications

    ManufacturerJettools
    ModelJBC-2
    ConditionNew
    Stock NumberJT9-252720
    Capacity (Lbs.)4400
    Load Capacity (Metric Tons)2
    Load Capacity (Tons)2
    Maximum Beam Flange Width (In.)8-2/3
    Minimum Beam Flange Width (In.)3
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Gross Weight11.35
    Net weight11.35
