JDP-20VST , Variable Speed with Tapping 1-1/2 Drilling Capacity, 2HP, 230V, 3Ph
Description
The JET JDP-20VST , 1-1/2 Drilling Capacity, 2HP, 230V, 3Ph

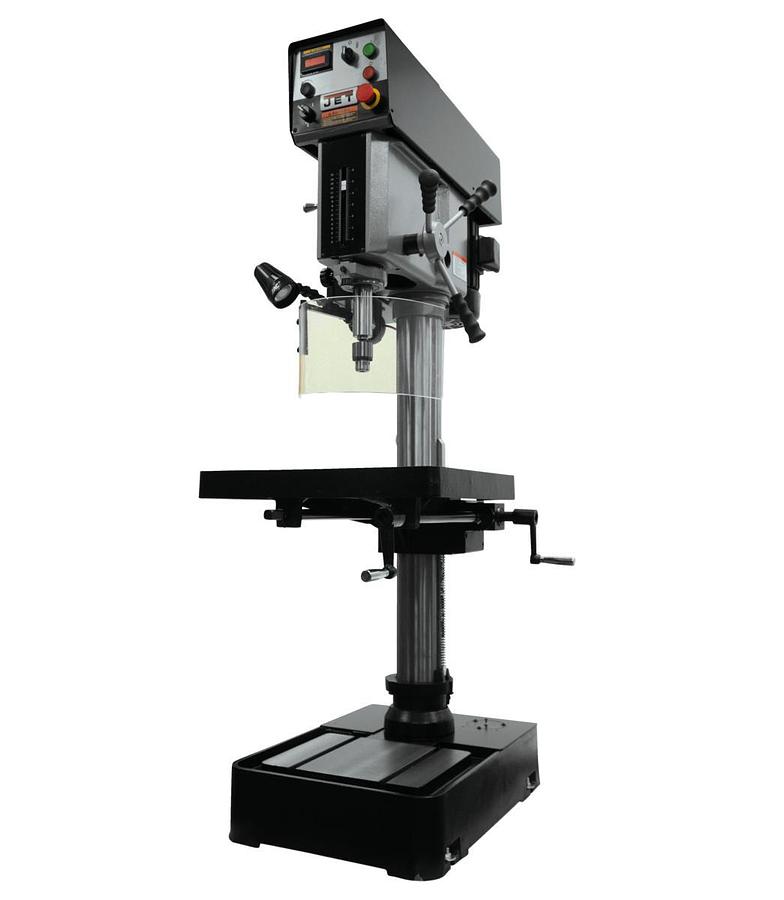

Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles and tapping with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base. CSA/CUS Certified.
Specifications
| Manufacturer | Jettools |
| Model | JDP-20VST |
| Condition | New |
| Stock Number | JT9-354240 |
| Base Dimensions (In.) | 27 x 19 |
| Column Diameter (In.) | 4-1/2 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Drilling Capacity Mild Steel (In.) | 1-3/8 |
| Drills to Center of Circle (In.) | 20 |
| Motor (HP) | 2HP, 230V,3ph |
| Overall Dimensions (L x W x H) (In.) | 38.18 x27.16 x 79.52 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 150 - 2,000 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30-1/4 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Variable Speed |
| Swing (In.) | 20 |
| T-Slot Centers (In.) | 7-7/16 |
| Table Size (L x W) (In.) | 22x18-3/4 |
| Table Travel (In.) | 20 |
| Tapping Capacity Cast Iron (In.) | 3/4 |
| Tapping Capacity Mild Steel (In.) | 5/8 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 154 |
| Gross Weight | 780.0 |
| Net weight | 780.0 |
