IDP-22, 22" Industrial Floor Model Drill Press
Description

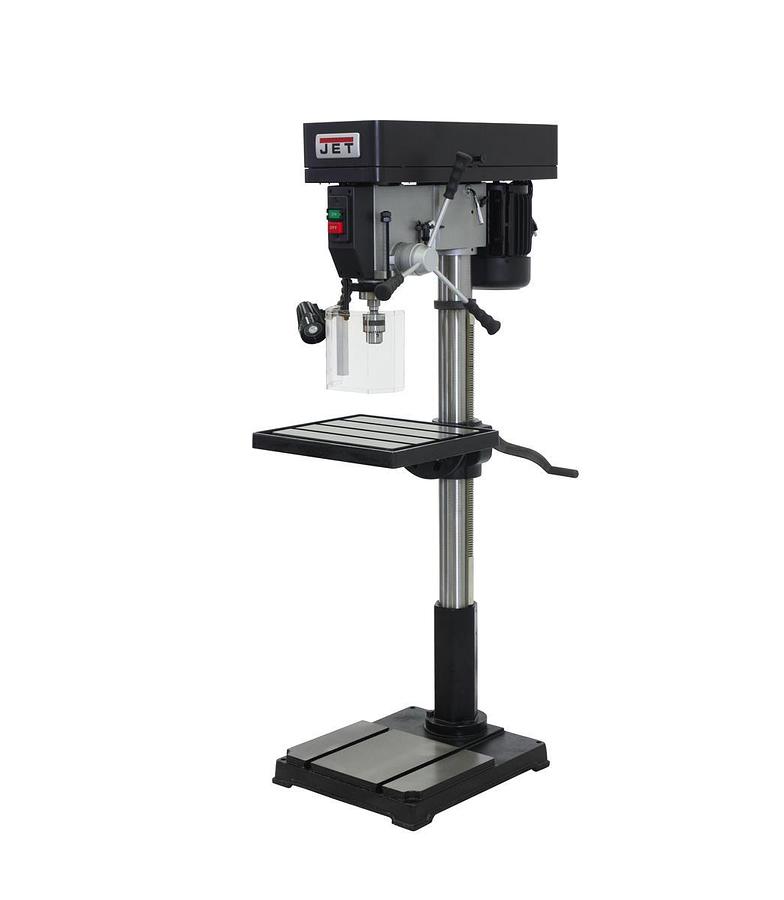

JET IDP-22, 22" Industrial Drill Press (354301)
Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize cast iron tables and base and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.
Specifications
| Manufacturer | Jettools |
| Model | IDP-22 |
| Condition | New |
| Stock Number | JT9-354301 |
| Base Dimensions (In.) | 22-5/8 x 19-7/16 x 3-3/8 |
| Base Work Table (In.) | 21-1/2 x 18-5/16 |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-5/8 |
| Distance Column to Spindle (In.) | 10-7/8 |
| Drilling Capacity Cast Iron (In.) | 1-1/4 |
| Drilling Capacity Mild Steel (In.) | 1 |
| Drills to Center of Circle (In.) | 22 |
| Motor (HP) | 1-1/2HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 35 x 19 x 67 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 175 - 3,050 |
| Spindle Distance to Base (In.) | 48-1/2 |
| Spindle Distance to Table (Max.) (In.) | 28 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 4-13/16 |
| Style (Type) | Belt Drive |
| T-Slot Centers (In.) | 3/4 |
| T-Slots Number and Size (In.) | 2 and 5/8 |
| Table Size (L x W) (In.) | 18-5/8 x 16-1/8 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 176 |
| Gross Weight | 364.0 |
| Net weight | 322.0 |
