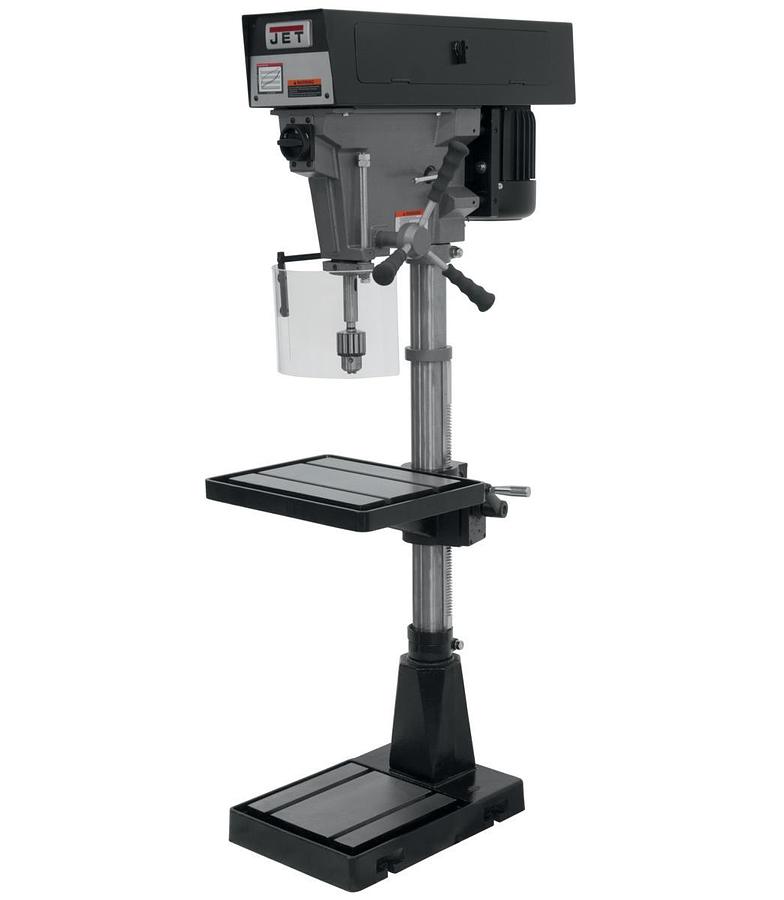

J-A3816, 15" 6-Speed Floor Model Drill Press 115/230V 1Ph
Description
J-A3816, 15" 6-Speed Floor Model Drill Press 115/230V 1Ph
JET’s heavy-duty 6-speed Step Pulley Drill Press are manufactured with the weight and rigidity to maintain the tight tolerances required of metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces for full quill support throughout its travel. JET included a wider range of operation speeds for drilling both small and larger holes with quick and easy speed changes
Specifications
| Manufacturer | Jettools |
| Model | J-A3816 |
| Condition | New |
| Stock Number | JT9-354500 |
| Base Dimensions (In.) | 20-7/8 x 14-3/16 x 3-1/8 |
| Base Work Table (In.) | 12-1/8 x 11-13/16 |
| Column Diameter (In.) | 3 |
| Distance Column to Spindle (In.) | 15 |
| Drilling Capacity Cast Iron (In.) | 5/8 |
| Drilling Capacity Mild Steel (In.) | 1/2 |
| Drills to Center of Circle (In.) | 15 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 6 |
| Overall Dimensions (L x W x H) (In.) | 30 x 20 x 71 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 375, 625, 1,125, 1,950, 3,400, 5,000 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 25-3/4 |
| Spindle Taper (In. x TPI) | MT-2 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Belt Drive |
| T-Slot Centers (In.) | 5-5/16 |
| T-Slots Number and Size (In.) | 2 and 1/2 |
| Table Size (L x W) (In.) | 15 x 18 |
| Table Travel (In.) | 16-3/4 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 90 |
| Gross Weight | 450.0 |
| Net weight | 394.0 |
