J-2530, 15" Bench Model Drill Press 115V 1Ph

or
Call (954)444-4004

Description

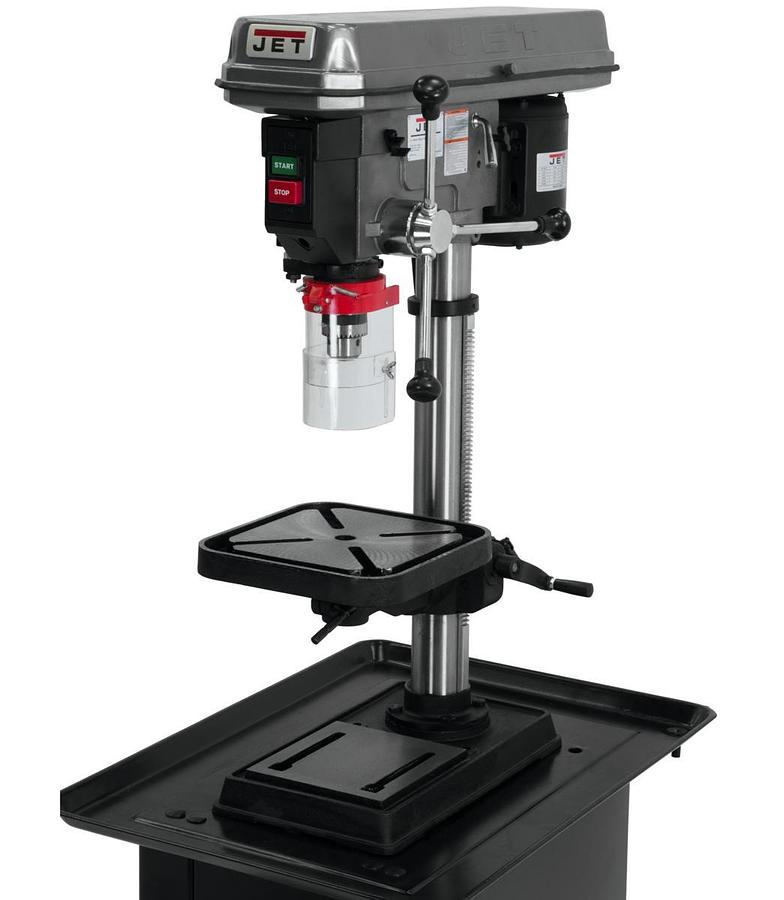

JET J-2530, 15-Inch Benchtop Drill Press, 3/4-HP, 115V 1Ph (354401)

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.


  • 3-1/8" stroke for deep hole applications
  • Cast iron head
  • Constructed to provide a solid base for drilling
  • Large ground steel column for maximum head and table support
  • Large quill allows greater accuracy
  • Telescoping safety spindle guard
  • The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-2530
    ConditionNew
    Stock NumberJT9-354401
    Base Dimensions (In.)18 x 10-1/2
    Base Work Table (In.)8 x 8
    Column Diameter (In.)2-7/8
    Distance Column to Spindle (In.)7-1/2
    Drilling Capacity Cast Iron (In.)5/8
    Drilling Capacity Mild Steel (In.)1/2
    Drills to Center of Circle (In.)15
    Motor (HP)3/4 HP, 115/230V, 1Ph
    Number of Spindle Speeds16
    Overall Dimensions (L x W x H) (In.)31 x 13 x 39-1/2
    Prop 65Cancer and Reproductive Harm
    Range of Spindle Speeds (RPM)200, 290 ,350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
    Spindle Distance to Base (In.)24
    Spindle Distance to Table (Max.) (In.)15
    Spindle Taper (In. x TPI)MT-2
    Spindle Travel (In.)3-3/8
    Style (Type)Belt Drive
    T-Slots Number and Size (In.)3 - 5/8
    Table Size (L x W) (In.)11-1/2 x 11-1/2
    Table Travel (In.)15-1/2
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)44
    Gross Weight163.0
    Net weight157.0
