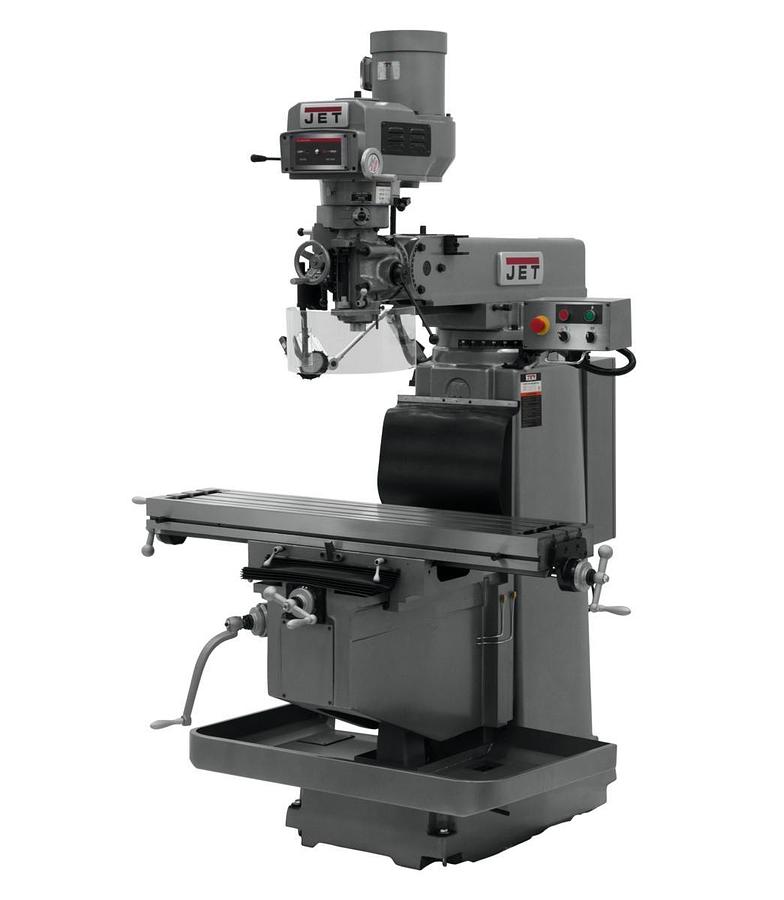

JTM-1254RVS with 3-Axis ACU-RITE MILLPOWER CNC with Air Power Drawbar

or
Call (954)444-4004

Description

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. CSA/CUS Certified. All the features you've come to expect backed by the industry-leading JET Two Year Warranty


  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
  • Adjustable gibs throughout
  • Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
  • Available offline software
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Three Precision ground t-slots
  • Two 115V outlets on electrical box for Powerfeeds only
  • USB + Ethernet compatible

    • Show All

    Specifications

    ManufacturerJettools
    ModelJTM-1254RVS CNC G2
    ConditionNew
    Stock NumberJT9-691945
    Column Width (In.)14-1/4
    Distance Spindle to Column (Max.) (In.)27-3/4
    Max Distance Spindle to Table (In.)23
    Motor (HP)5HP, 230/460V, 3Ph
    Overall Dimensions (L x W x H) (In.)26.75 x 16.625 x 58.625
    Power Draw BarPneumatic
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)4-1/8
    Quill Down Feed Rates (IPR).0015 - .003 - .006
    Range of Spindle Speeds (RPM)80 - 3,800
    Saddle Width (In.)25-5/8
    Spindle Taper (In. x TPI)R-8
    Spindle Travel (In.)5
    Style (Type)CNC
    T-Slot Centers (In.)2-1/2
    Table Cross Travel (In.)15-1/3
    Table Longitudinal Travel (In.)33-7/8
    Table Size (L x W) (In.)12 x 54
    Travel of Knee (In.)19-1/4
    Travel of Ram (In.)25
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)925
    Gross Weight3696.0
    Net weight3260.0
