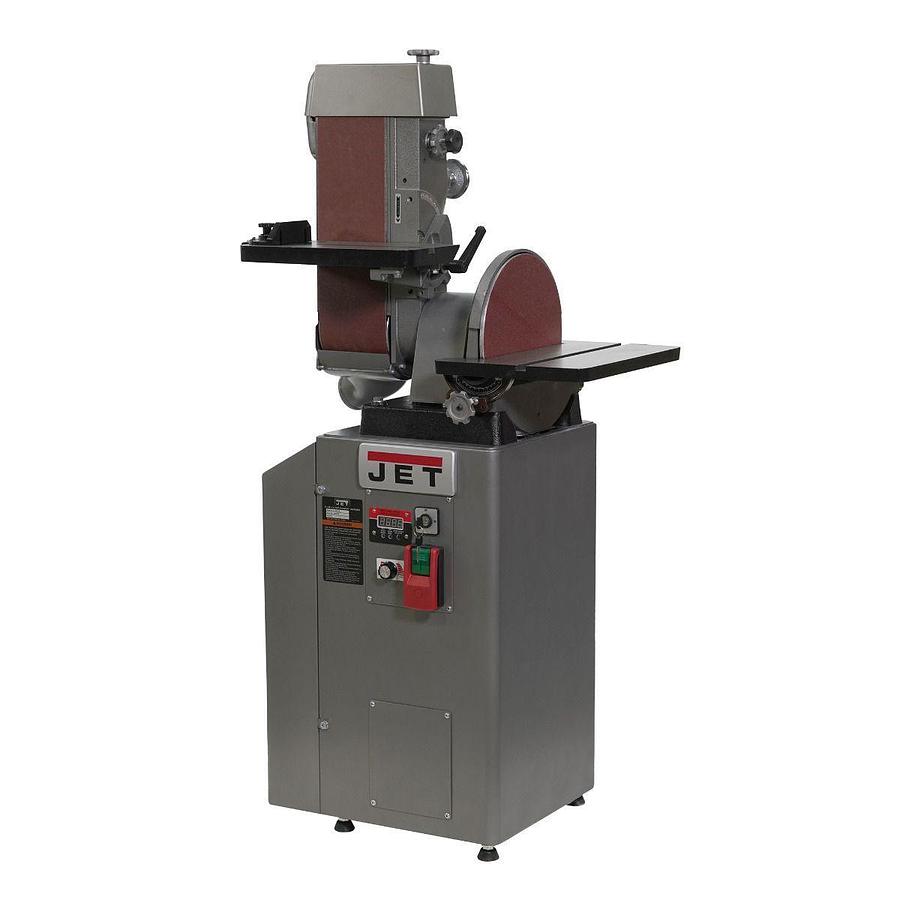

J-64812VS, 6" x 48" Variable-Speed Belt and 12" Disc Finishing/Grinding Machine

or
Call (954)444-4004

Description

JET’s Variable Speed combination Belt & Disc machine conveniently grinds and finishes delivering the top characteristics and benefits of both a belt and a disc finishing system in one machine. This workhorse features a compact footprint (20.5”x27”x58") and provides a variable speed solution to finish or grind a wider range of material including mild steel, aluminum, and even plastics. Remove material with precision thanks to speeds ranging from 2200-4000 SFPM (Belt) and 1547-2813 RPM (Disc). Both worktables tilt 45 degrees for added versatility and are quickly dialed in with the included measurement gauge. We even fine-tuned the design for reduced vibration and a quieter operating level to make your next project nearly effortless.


  • Variable speed range from 2200-4000 SFPM (Belt) and 1547-2813 RPM (Disc) allows users to finish or grind a wider range of material including mild steel, aluminum, and even plastic by changing abrasive belt & disc grits
  • The belt head is capable of both vertical and horizontal adjustments, allowing operation at any angle
  • Contour finishing, mitering, flat finishing, beveling and precision finishing are simple
  • The drums are fully enclosed, and the sanding belt is guarded for safety
  • Maximizing the operator's safety, the inverter allows for quick stopping of the belt and disc
  • Variable position locks that can be used to create a sturdy work surfaces
  • A fully machined and balanced disc runs smoothly without any vibration
  • The heavy-duty cast iron platen is both adjustable and removable.
  • The standard die-cast aluminum miter gauge allows for easy attainment of both plain and compound miters
  • Both the dust collector and dust chute are adjustable to maximize collection

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-64812VS
    ConditionNew
    Stock NumberJT1-112
    Belt Size (W x L) (In.)6 x 48
    Belt Speed (SFPM)2200-4400
    Belt Table Size (In.)7-1/16” x 14-11/16"
    Belt Grit80.0000
    Disc Diameter (In.)12.0000
    Motor Speed (RPM)1720
    Belt Table Tilt (Deg.)45 Out
    Disc Table Size (L x W) (In.)16-1/2 X 9
    Dust Port Size (In.)3
    Motor Phase3
    Motor Voltage (V.)230
    Overall Dimensions (L x W x H) (In.)31-1/2 x 22-27/32 x 49-3/16
    Warranty2 Year
    Prop 65Cancer and Reproductive Harm
    Wheel Diameter (Dia. x W) (In.)12
    Gross Weight385.0
    Net weight350.0
    Dust Port Outside Diameter (In.)3-1/4
