JDCS-505, Metal Dust Collector Stand 115V

or
Call (954)444-4004

Description

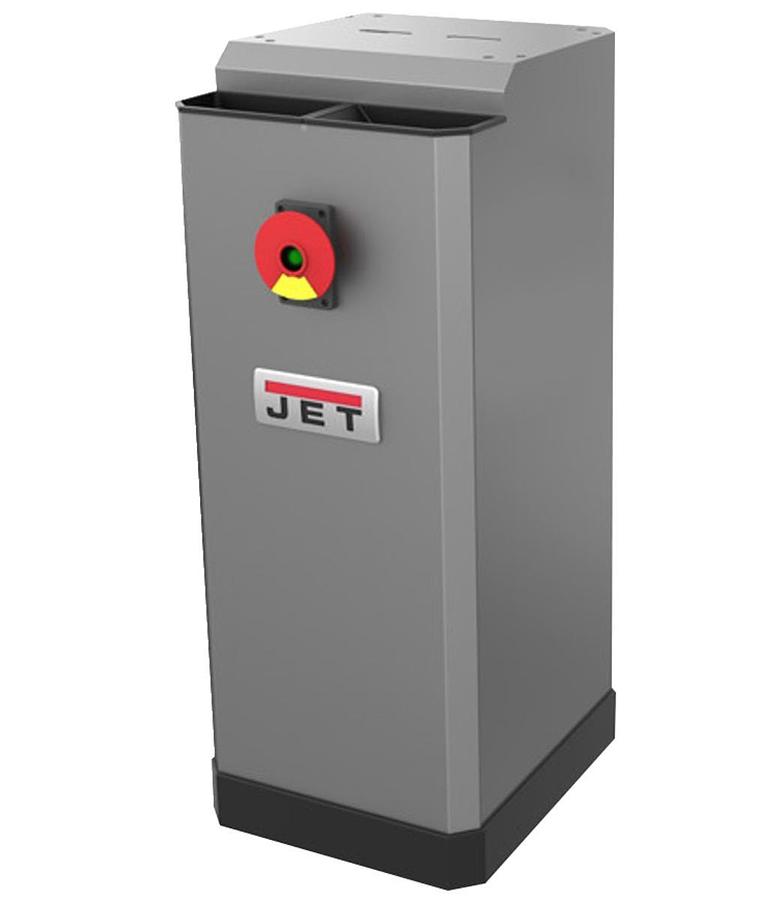

JET JDCS-505 Metal Dust Collector Stand, 115V (414800)

JET’S new Metal Dust Collection Stand is great for collecting abrasive dust from most brands Bench Grinders and Bench Top Belt & Disc Sanders.


  • Any brand bench top belt, disc or combination machine can be mounted using the optional Universal Adapter Plate (414830)
  • Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable
  • CSA/CUS Certified
  • Four Adjustable Leveling Pads
  • Heavy-Duty 16 gauge steel construction
  • Large On/off switch with safety key
  • Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips
  • Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection
  • Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector
  • Universal Metalworking Dust Collection Stand, fits ANY BRAND bench grinder and bench top belt & disc sanders

    • Show All

    Specifications

    ManufacturerJettools
    ModelJDCS-505
    ConditionNew
    Stock NumberJT9-414800
    Maximum CFM472.0000
    Maximum Hose Velocity (SFPM)3465.0000
    Motor (HP)1/2 HP, 115V, 1Ph (20A)
    Prop 65Cancer and Reproductive Harm
    Sound Rating (Db.)75 db @ 10 Ft
    Style (Type)Stand
    Warranty2 Year
    Gross Weight86.0
    Net weight86.0
