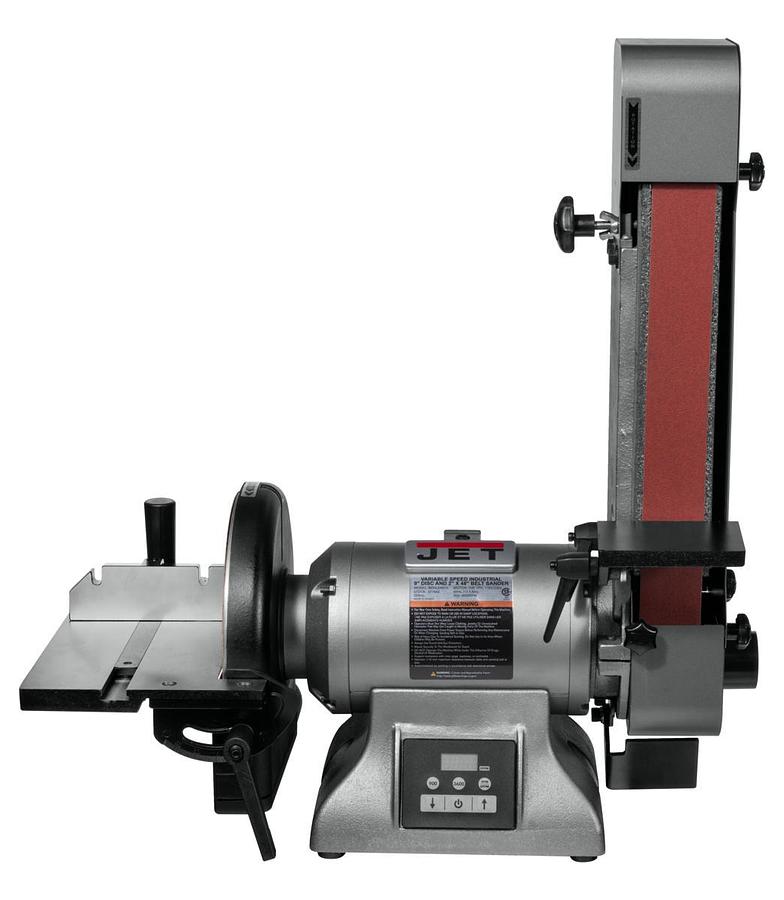

IBDG-248VS Variable Speed Industrial 2" x 48" Belt and 9" Disc Grinder

or
Call (954)444-4004

Description

The Variable Speed IBDG-248VS Combination 2" x 48" Belt and 9" Disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. The Variable Speed IBDG-248VS includes a digital readout that allows operators to accurately monitor the RPMS and SFPM. The electric motor brake quickly stops the wheels from 3,600 RPMs to 0 in less than 20 seconds. CSA/CUS Certified.


  • 9" aluminum disc reduces heat buildup and prolongs abrasive life
  • Cast iron work rests with tool-less adjustments
  • Contact wheel grinding with toolless access
  • Easy-to-use belt tracking.
  • Full guarding of all non-work contact points
  • Heavy Cast Iron Bases reduce vibration.
  • Solid cast iron platen offers rigid grinding surface
  • Two dust collection ports minimize debris build up.
  • VS models include Break resistor which allows for rapid stopping of belt and disc movement.

    • Show All

    Specifications

    ManufacturerJettools
    ModelIBDG-248VS
    ConditionNew
    Stock NumberJT9-577842
    Belt Size (W x L) (In.)2 x 48
    Belt Speed (SFPM)1178 - 4712
    Belt Grit80.0000
    Disc Diameter (In.)9.0000
    Disc Speed (RPM)900 - 3600
    Amperage Draw @ 115V 1Ph7
    Dust Port Size (In.)2
    Motor (HP)1
    Overall Dimensions (L x W x H) (In.) (sanding bracket is parallel)23-1/2 x 26-3/4 x 12-1/4
    Overall Dimensions (L x W x H) (In.) (sanding bracket is vertical)23-1/2 x15 x 25-7/8
    Warranty2 Year
    Prop 65None
    Style (Type)7
    Gross Weight96.0
    Net weight78.0
