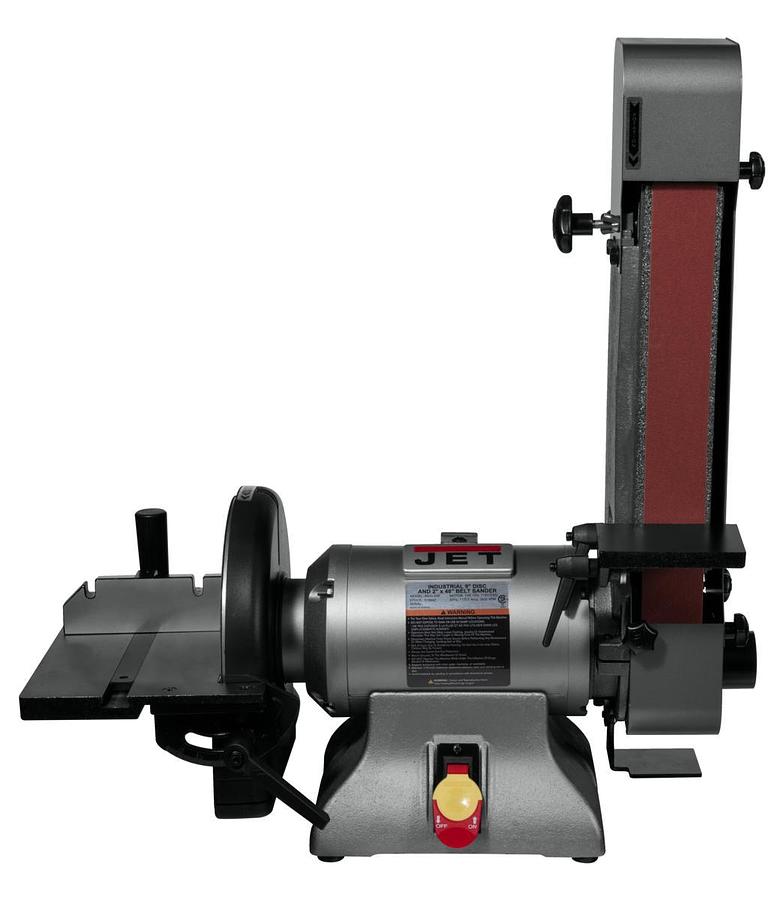

IBDG-248 Combination Industrial 2" x 48" Belt and 9" Disc Grinder

or
Call (954)444-4004

Description

The IBDG-248 Combination 2" x 48" Belt and 9" Disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. CSA/CUS Certified.


  • 9" aluminum disc reduces heat buildup and prolongs abrasive life
  • Cast iron work rests with tool-less adjustments
  • Contact wheel grinding with toolless access
  • Easy-to-use belt tracking.
  • Full guarding of all non-work contact points
  • Heavy Cast Iron Bases reduce vibration.
  • Safety switch with removable key
  • Solid cast iron platen offers rigid grinding surface
  • Two dust collection ports minimize debris build up.

    • Show All

    Specifications

    ManufacturerJettools
    ModelIBDG-248
    ConditionNew
    Stock NumberJT9-578842
    Belt Size (W x L) (In.)2 x 48
    Belt Speed (SFPM)4712
    Belt Grit80.0000
    Disc Diameter (In.)9.0000
    Disc Speed (RPM)3600
    Amperage Draw @ 115V 1Ph11
    Dust Port Size (In.)2
    Motor (HP)1
    Motor Voltage (V.)115
    Overall Dimensions (L x W x H) (In.) (sanding bracket is parallel)23-1/2 x 26-3/4 x 12-1/4
    Overall Dimensions (L x W x H) (In.) (sanding bracket is vertical)23-1/2 x15 x 25-7/8
    Warranty2 Year
    Prop 65Cancer
    Shaft Diameter (In.)11
    Gross Weight95.0
    Net weight77.0

    Documents
