J-4200A, 6" x 48" Industrial Combination Belt and 12" Disc Finishing Machine 115V 1Ph

or
Call (954)444-4004

Description

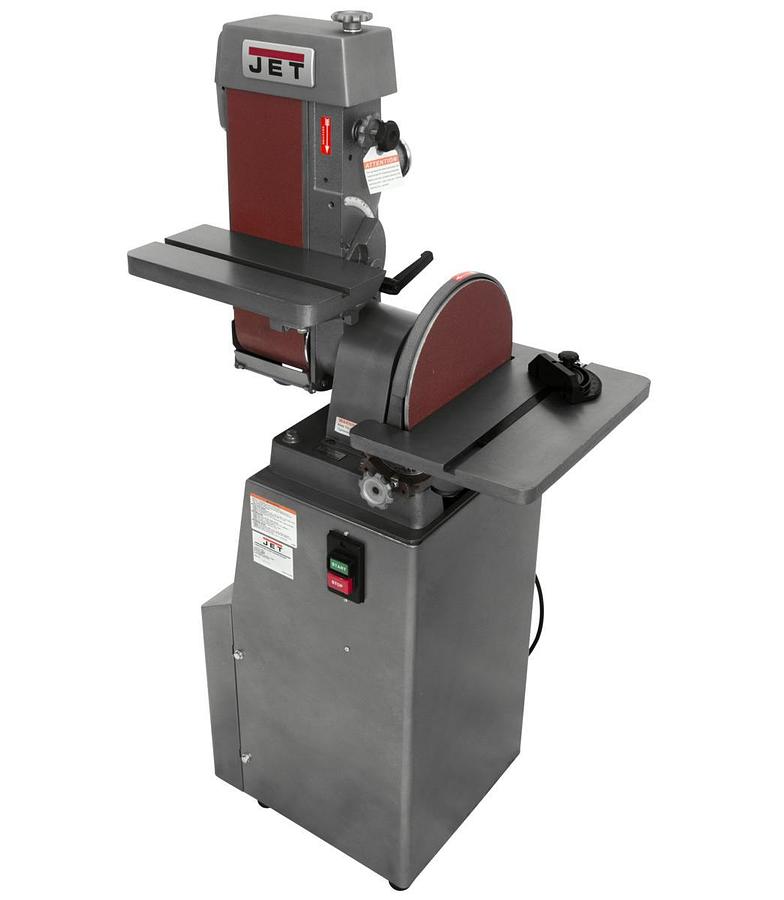

JET J-4200A 6"x48" Belt / 12" Disc Combination Sander (414551)

High-speed precision and amazing versatility. This rugged piece of equipment has a belt that operates at any angle, and conforms to curves, angles or circular finishing and grinding operations. Machinists who take great pride in their work prefer the JET Industrial Combination Belt & Disc Finishing Machine


  • 60 grit belt and disc standard on machine
  • Adjustable dust collector and dust chute
  • Belt head adjusts vertically and horizontally
  • Belt operates at any angle
  • Completely enclosed drums and guarded sanding belt
  • Fully machined, balanced disc
  • Large cast iron slotted table
  • Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
  • Removable upper belt guard for contour finishing
  • Variable position locks

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-4200A
    ConditionNew
    Stock NumberJT9-414551
    Belt Size (W x L) (In.)6 x 48
    Belt Speed (SFPM)2850
    Belt Table Size (In.)7-3/8 x 14-3/4
    Belt Grit80.0000
    Disc Diameter (In.)12.0000
    Disc Speed (RPM)1,960
    Belt Table Tilt (Deg.)45 Out, 20 In
    Disc Table Size (L x W) (In.)16-1/2" X 9"
    Disc Table Tilt (Deg.)45°
    Motor (HP)1-1/2 HP, 115V, 1Ph
    Motor PhaseSingle
    Motor Voltage (V.)115
    Overall Dimensions (L x W x H) (In.)29 x 19 x 58
    Warranty2 Year
    Prop 65Cancer and Reproductive Harm
    Wheel Diameter (In.)12
    Gross Weight327.0
    Net weight300.0

    Documents
