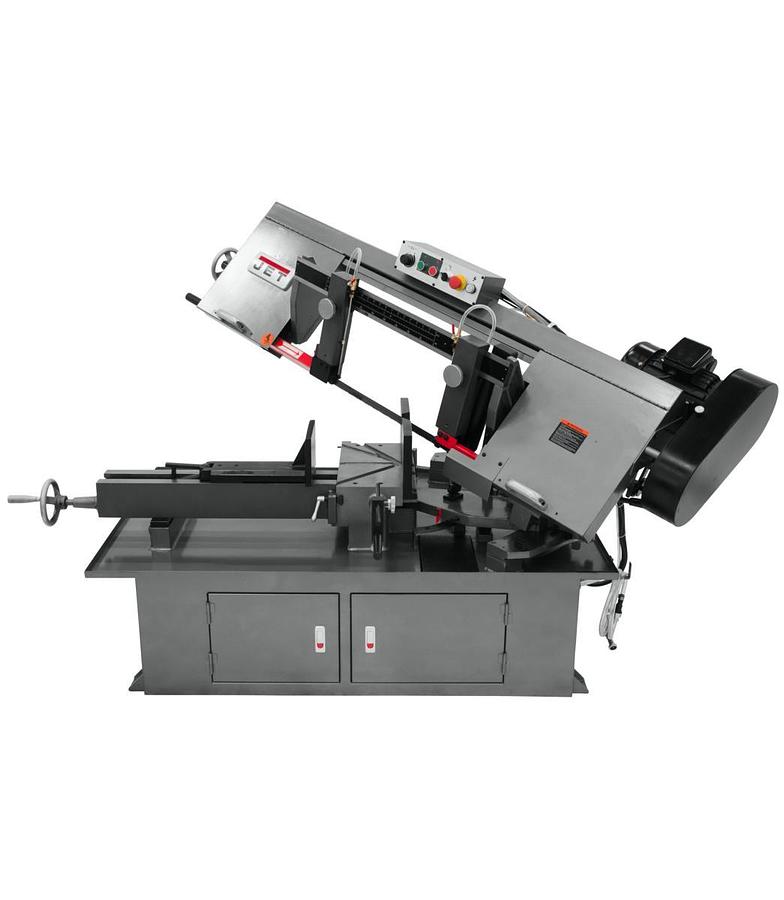

MBS-1018-3 , 10" x 18" Horizontal Dual Mitering Bandsaw

or
Call (954)444-4004

Description

MBS-1018-3 , 10" x 18" Horizonal Dual Mitering Bandsaw, 2 HP, 230V, 3Ph

JET Dual Mitering Horizontal Bandsaws unique design head dual miters both left and right for quick angle cuts. The heavy-duty construction on the bandsaw features a fully guarded blade for operator safety and blade tension gauge to ensure correct cutting position. The automatic blade breakage sensor detects accidental breakage and interrupts the power. With the built-in, self-propelled blade brush, the stress of chip build up in blade guides is no longer.


  • Adjustable Material Stop
  • Automatic shut off switch stops the sawing process
  • Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
  • Integrated pressurized wash hose for easy machine clean up
  • Magnetic starter for low voltage and lost phase protection
  • Quick action vise on 10" saws

    • Show All

    Specifications

    ManufacturerJettools
    ModelMBS-1018-3 10
    ConditionNew
    Stock NumberJT9-413410
    Blade Wheel Diameter (In.)14-1/4
    Head Movement (Deg.)45R ,60L
    Motor (HP)2 HP, 230/460V, 3 Phase
    Overall Dimensions (L x W x H) (In.)79 x 36 x 46
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)10 x 12
    Rectangle at 60 Degrees (In.)6 x 5
    Rectangle at 90 Degrees (In.)10 x 17
    Round at 45 Degrees (In.)10
    Round at 60 Degrees (In.)6
    Round at 90 Degrees (In.)10
    Warranty2 Year
    Gross Weight1144.0
    Net weight1034.0

    Documents
