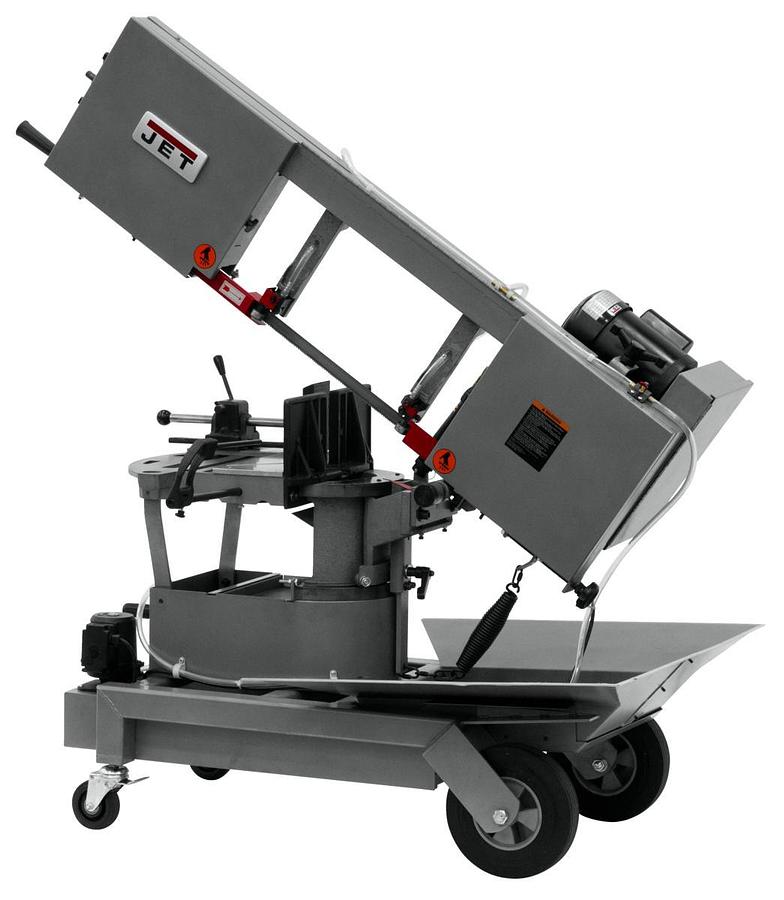

HVBS-10-DMWC 10” Horizontal/Vertical Dual Mitering Portable Band Saw with Coolant System, 1HP, 115V, 1 Ph

or
Call (954)444-4004

Description

HVBS-10-DMWC 10” Horizontal/Vertical Dual Mitering Portable Band Saw with Coolant System, 1HP, 115V, 1 Ph

The JET Dual-Mitering Band Saw offers versatility and ease. The unique head design miters both left and right, allowing for quick angle cuts. Add to the convenience with easy conversion from a horizontal to vertical position, and wheels for moving around the shop floor.


  • Adjustable vise
  • Automatic shut off switch stops the sawing process
  • Blade is fully guarded for Operator safety
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Head is pressure controlled by a hydraulic cylinder
  • Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
  • Large 16" x 10" Vertical cutting table
  • Power switch with safety key prevents accidental start up
  • Protractor for fast and accurate angle cutting
  • Removable chip tray

    • Show All

    Specifications

    ManufacturerJettools
    ModelHVBS-10-DMWC
    ConditionNew
    Stock NumberJT9-424465
    Head Movement (Deg.)+/- 45
    Maximum Vise Opening (In.)10
    Motor (HP)1HP, 115V, Single Phase
    Overall Dimensions (L x W x H) (In.)72 x 34.5 x 46
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)8 x 5-1/2
    Rectangle at 90 Degrees (In.)8 x 9
    Round at 45 Degrees (In.)6-1/2
    Round at 90 Degrees (In.)10
    Table Height (In.)30 13/32
    Vertical Cutting Capacity13 x 10
    Warranty2 Year
    Gross Weight558.0
    Net weight528.0
