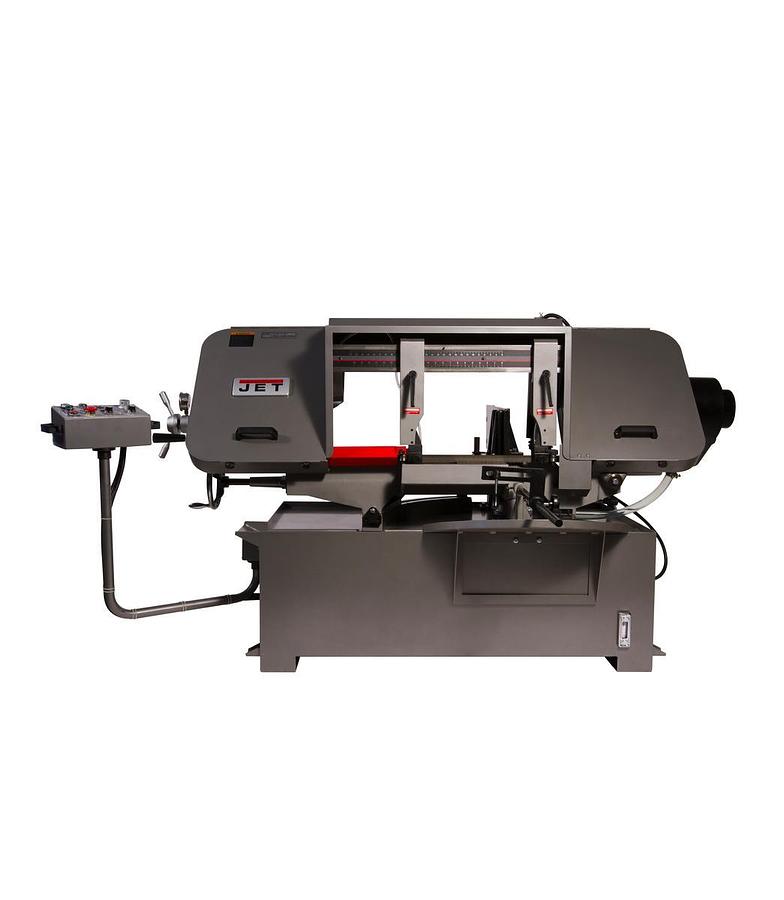

HBS-1220MSA, 12" x 20" Semi-Automatic Mitering Variable Speed Bandsaw

or
Call (954)444-4004

Description

HBS-1220MSA, 12" x 20" Semi-Automatic Mitering Variable Speed Bandsaw

This JET large capacity , semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45° angle. The hydraulic downfeed control is easily adjusted, enabling feed rates to evolve with various types of materials.


  • Automatic blade breakage sensor detects accidental breakage and interrupts the power
  • Auxiliary roller support on back of vise
  • Blade is fully guarded for Operator safety
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Circulating coolant system through both blade guides
  • CSA/CUS Certified
  • Heavy Duty construction
  • One piece blade cover makes changing blades extremely easy
  • Semi-automatic bow raises after cut to predetermined height
  • Swing away control arm puts the controls at the Operator fingertips

    • Show All

    Specifications

    ManufacturerJettools
    ModelHBS-1220MSA
    ConditionNew
    Stock NumberJT9-424476
    Head Movement (Deg.)45
    Maximum Vise Opening (In.)19-/5/8
    Motor (HP)3 HP , 230/460V, 3-Ph
    Overall Dimensions (L x W x H) (In.)87 x 31.5 x 53
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)12-9/16 x 11-7/32
    Round at 45 Degrees (In.)11-7/32
    Round at 90 Degrees (In.)11-13/16
    Warranty2 Year
    Gross Weight1606.0
    Net weight1430.0

    Documents
