HBS-56MVS, Variable Speed, Mitering 5" x 6" Horizontal Bandsaw, .5HP 115V

or
Call (954)444-4004

Description

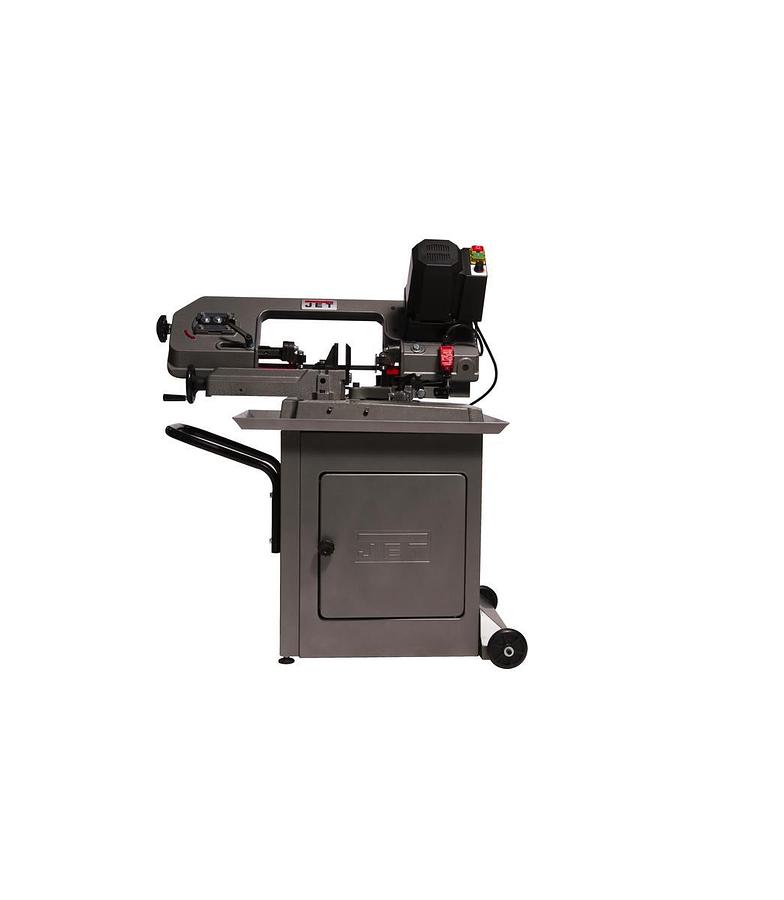

JET HBS-56MVS Variable-Speed 5" x 6" Horizontal Bandsaw, 1/2-HP, 115V (414558)

This JET Variable Speed, Mitering Bandsaw packs the features in a small package. The exclusive 5x6 Portable Variable Speed Mitering Bandsaw includes a newly designed motor with a 3-step gear transmission for unprecedented torque output. The versatile heavy-duty casted head swivels for a maximum cut at 45° & 60° allowing precision cuts without the hassle of moving the material. CSA/CUS Certified.


  • Front legs feature leveling pads
  • Fully adjustable ball bearing blade guides
  • Hardened Ferrous 82-130 SFPM
  • Quick speed changes with the turn of a dial, no more belt changes
  • Variable Speed gives you the ability to cut various material
  • Wheels come standard for ease of movement around your shop

    • Show All

    Specifications

    ManufacturerJettools
    ModelHBS-56MVS
    ConditionNew
    Stock NumberJT9-414558
    Amperage3.8
    Amperage Draw @ 115V 1Ph3.8
    Bed Height (In.)28
    Blade Speed (SFPM)Variable 80-230
    Blade Speeds (SFPM)Variable, 80-230
    Blade Wheel Diameter (In.)7-3/8
    Electrics1/2HP, 115V/ 1Ph Prewired 115V
    Motor (HP)1/2 HP, 115V, Single Phase
    Overall Assembled (Bow Lowered) (L x W x H)38.58 x 20.47 x 47.3
    Overall Dimensions (L x W x H) (In.)38.58 x 20.47 x 43.3
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)3-3/4 x 2-1/3
    Rectangle at 60 Degrees (In.)1-1/4 x 1-3/4 , 5 x 1-3/4
    Rectangle at 90 Degrees (In.)5 x 6 , 2 x 6
    Round at 45 Degrees (In.)3-3/4
    Round at 90 Degrees (In.)5
    Shipping Dimensions (L x W x H) (In.)35.43 x 17.5 x 21.65
    Shipping Weight (Lbs.)147
    Vise Swivels (Deg.)0 - 60
    Warranty2 Year
    Gross Weight176.0
    Net weight172.0
    Blade Size (In.)1/2 x .025 x 64-1/2
