HVBS-712, 7" x 12" Horizontal / Vertical Bandsaw

or
Call (954)444-4004

Description

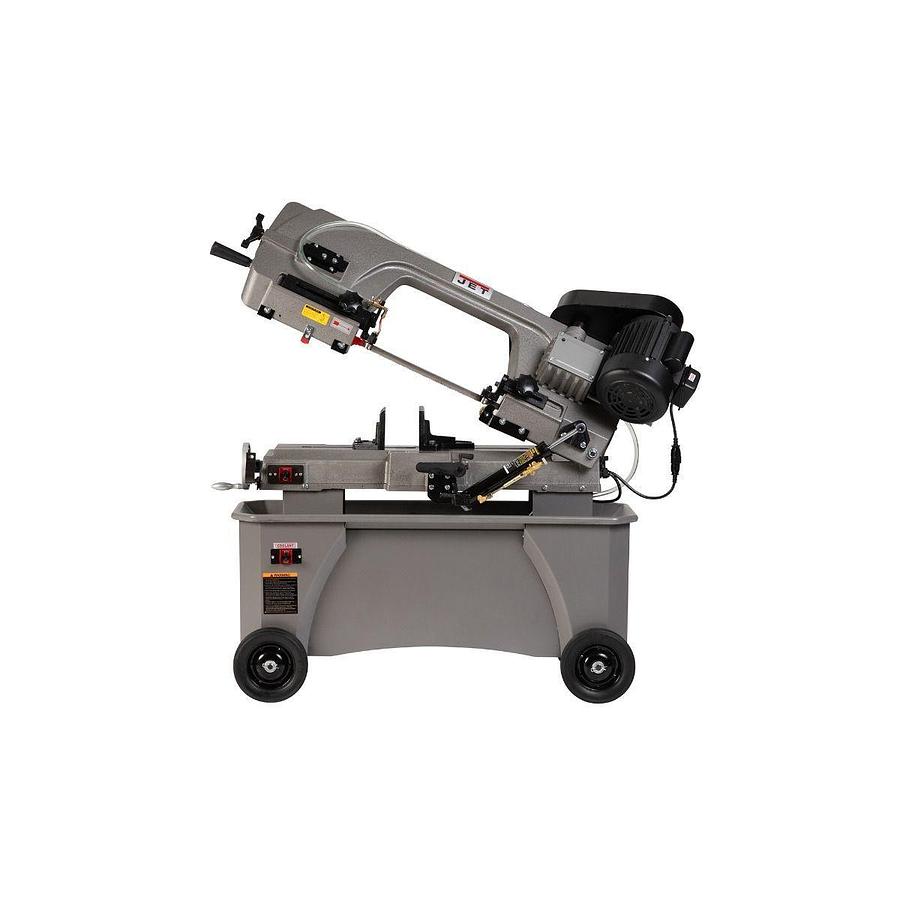

JET HVBS-712 7"x12" Horizontal/Vertical Bandsaw

The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features you’ve come to expect.


  • 9" x 12" worktable in the vertical position
  • Adjustable Material Stop
  • Adjustable material stop for repeatability
  • Blade drive is a belt to sealed, hardened, and ground gear drive system
  • Blade wheels are made from flanged cast iron
  • Blade wheels are made from flanged cast iron for increased durability
  • Cast mounted adjustable hydraulic downfeed
  • CSA/CUS Certified
  • Four 8" Rubber Wheels for Ease of Movement
  • Improved Height and width of stand with built-in storage cabinet and chip tray

    • Show All

    Specifications

    ManufacturerJettools
    ModelHVBS-712
    ConditionNew
    Stock NumberJT9-414559
    Blade Speeds (SFPM)86, 132, 178, 260
    Blade Wheel Diameter (In.)11-3/4
    Coolant Capacity (Gal.)1
    DriveStep Pulley
    Head Movement (Deg.)0
    Motor (HP)3/4 HP, 115/230V, 1Ph
    Overall Dimensions (L x W x H) (In.)48 x 17 x 40
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)6-1/2 x 4-1/2
    Rectangle at 90 Degrees (In.)4 x 11 / 7 x 10-3/8
    Round at 45 Degrees (In.)4-1/2
    Round at 90 Degrees (In.)7
    Square at 45 Degrees (In.)4-1/2 x 4-1/2
    Square at 90 Degrees (In.)7 x 7
    Vise Swivels (Deg.)45
    Warranty2 Year
    Gross Weight418.0
    Net weight374.0
