HBS-814GH, 8" x 14" Horizontal Geared Head Bandsaw

or
Call (954)444-4004

Description

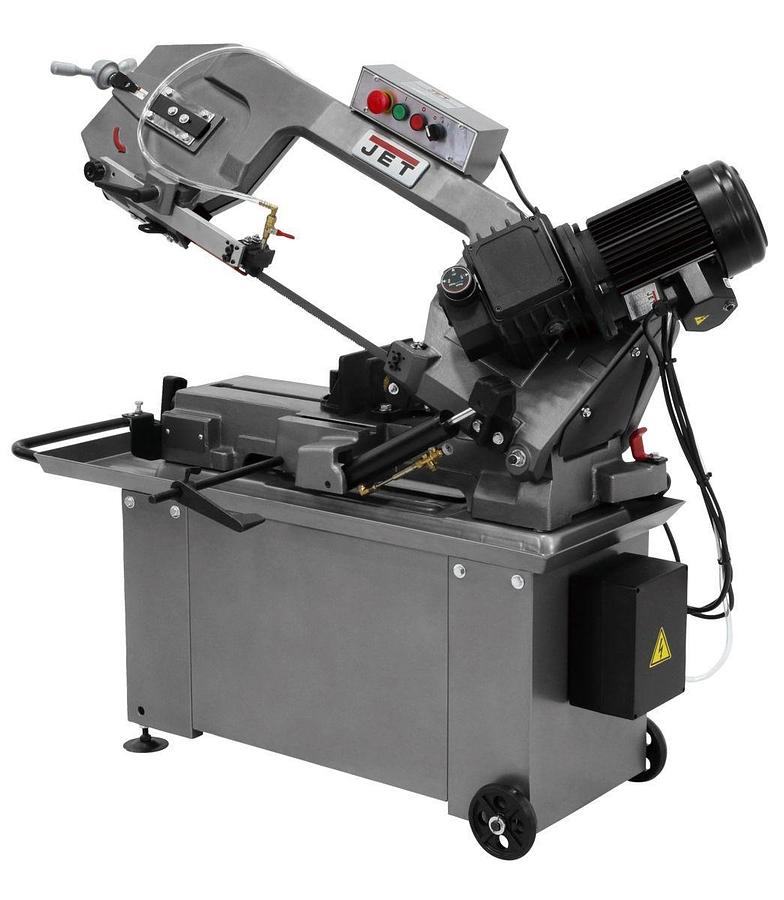

JET HBS-814GH 8"x14" Geared Head Horizontal Bandsaw (414466)

The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture, professionals know they can rely on this saw when the project is on the line.


  • Adjustable Material Stop
  • Built-in, self-propelled blade brush extends blade life
  • Easily accessible saw control panel
  • Fully adjustable hydraulic downfeed system
  • Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
  • Heavy-duty geared head transmission for quick speed changes
  • Quick-positioning vise with fully adjustable jaws
  • Quick-positioning vise with fully adjustable jaws, swivels to 45°
  • Wheels permit easy storage and movement

    • Show All

    Specifications

    ManufacturerJettools
    ModelHBS-814GH
    ConditionNew
    Stock NumberJT9-414466
    Bed Height (In.)26
    Blade Speeds (SFPM)135, 197, 256
    Blade Wheel Diameter (In.)12
    DriveGeared Head
    Motor (HP)1 HP, 115/230V, 1Ph
    Overall Dimensions (L x W x H) (In.)51-1/2 x 18-1/8 x 44
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)6-1/2 x 6 and 2 x 7
    Rectangle at 90 Degrees (In.)14 x 8 and 2 x 14
    Round at 45 Degrees (In.)6-1/2
    Round at 90 Degrees (In.)8
    Vise Swivels (Deg.)45°
    Warranty2 Year
    Gross Weight342.0
    Net weight287.0
