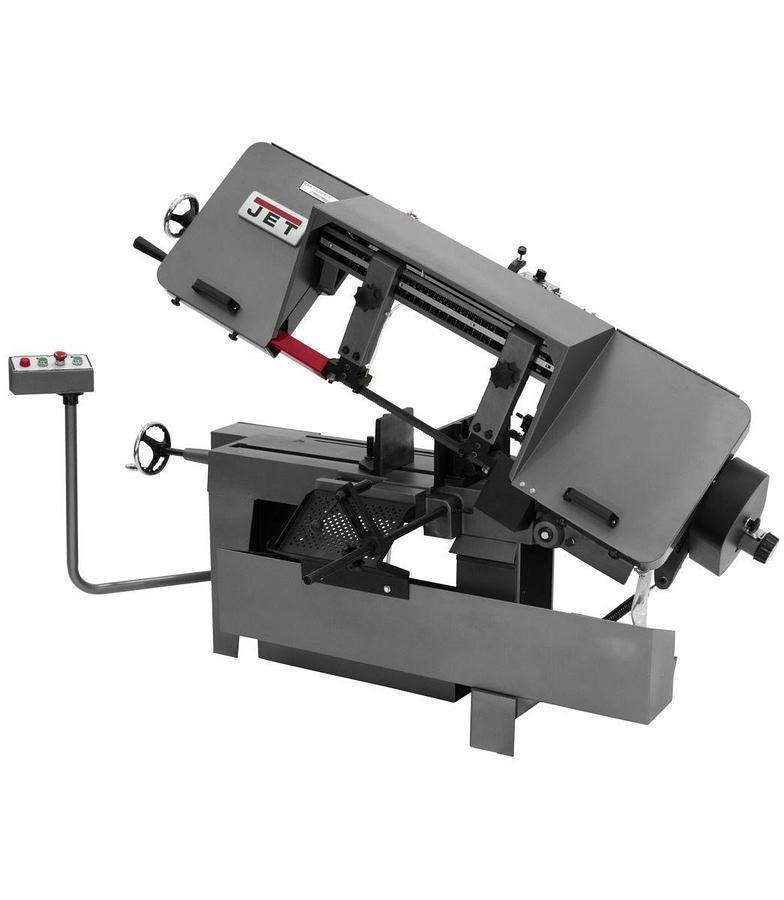

J-7040-4, 10" x 16" Horizontal Bandsaw

or
Call (954)444-4004

Description

J-7040-4, 10" x 16" Horizontal Bandsaw 460V 3Ph

Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function and performance


  • Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
  • Adjustable Material Stop
  • Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
  • Patented 3-Jaw vise with rapid action moveable jaw for faster set up
  • Swing away control panel houses major saw controls
  • Variable speed drive system

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-7040-4
    ConditionNew
    Stock NumberJT9-414499
    Blade Speeds (SFPM)100 - 350
    Blade Wheel Diameter (In.)14
    DriveVariable Speed
    Motor (HP)2 HP, 460V, 3Ph
    Overall Dimensions (L x W x H) (In.)75-1/2 x 33 x 41
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)6-1/2 x 11
    Rectangle at 90 Degrees (In.)10 x 10 and 7 x 16
    Round at 45 Degrees (In.)10
    Round at 90 Degrees (In.)10
    Vise Swivels (Deg.)45°
    Warranty2 Year
    Gross Weight1025.0
    Net weight973.0
