HVBS712V, 7" x 12" Variable Speed Horizontal / Vertical Bandsaw

or
Call (954)444-4004

Description

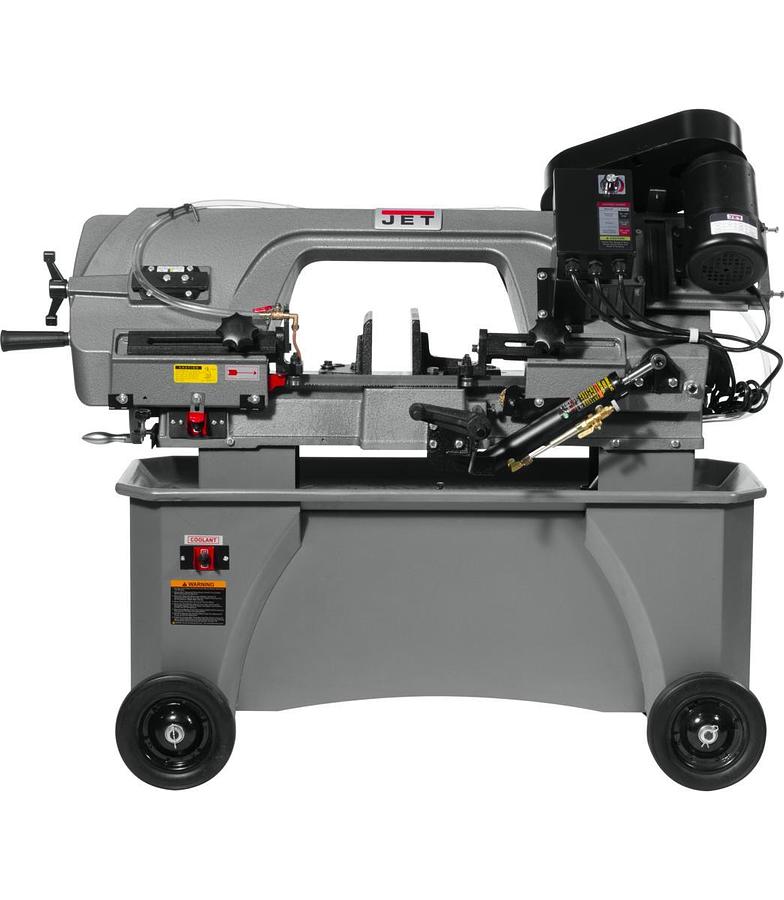

HVBS712V, 7" x 12" Variable Speed Horizontal / Vertical Bandsaw, 1HP,115V,1Ph

The JET HVBS-712V Horizontal/Vertical Variable Speed metalworking bandsaw’s industry-leading innovation is centered around increased output and operator safety. Powered by a 3-step gear one horse power DC motor, the HVBS-712V produces unbeatable torque while consuming less energy and is capable of producing speeds from 88 – 270 SFPM. Change speeds with the turn of a knob, no need to change belts anymore. Includes vertical 9-1/16" x 11-7/8" worktable. CSA/CUS Certified. UL Listed.


  • Adjustable toolless material stop
  • Four 8" Rubber Wheels for Ease of Movement
  • Heavy Casted Iron Bow and Bed
  • Hydraulic downfeed for ease of cut
  • Improved Wider Stand with Built-in Storage Cabinet and Chip Tray
  • Multi-Position Blade Guide
  • Sealed Hardened and Ground Gear Drive
  • Side-Eccentric Shaft and ball bearing: Rear-Ball Bearing Blade Guides
  • Toolless quick change vise miters to 45 degrees

    • Show All

    Specifications

    ManufacturerJettools
    ModelHVBS712V
    ConditionNew
    Stock NumberJT9-415559
    Blade Speeds (SFPM)88 - 270
    Blade Wheel Diameter (In.)11-3/4
    Motor (HP)7.5 Amp, 3500RPM DC motor
    Overall Dimensions (L x W x H) (In.)48 x 17 x 40
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)6-1/2 (H) x 4-1/2 (W)
    Round at 45 Degrees (In.)4-1/2
    Round at 90 Degrees (In.)7
    Square at 45 Degrees (In.)4-1/2 x 4-1/2
    Square at 90 Degrees (In.)7 x 7
    Vise Swivels (Deg.)45
    Warranty2 Year
    Gross Weight418.0
    Net weight374.0
