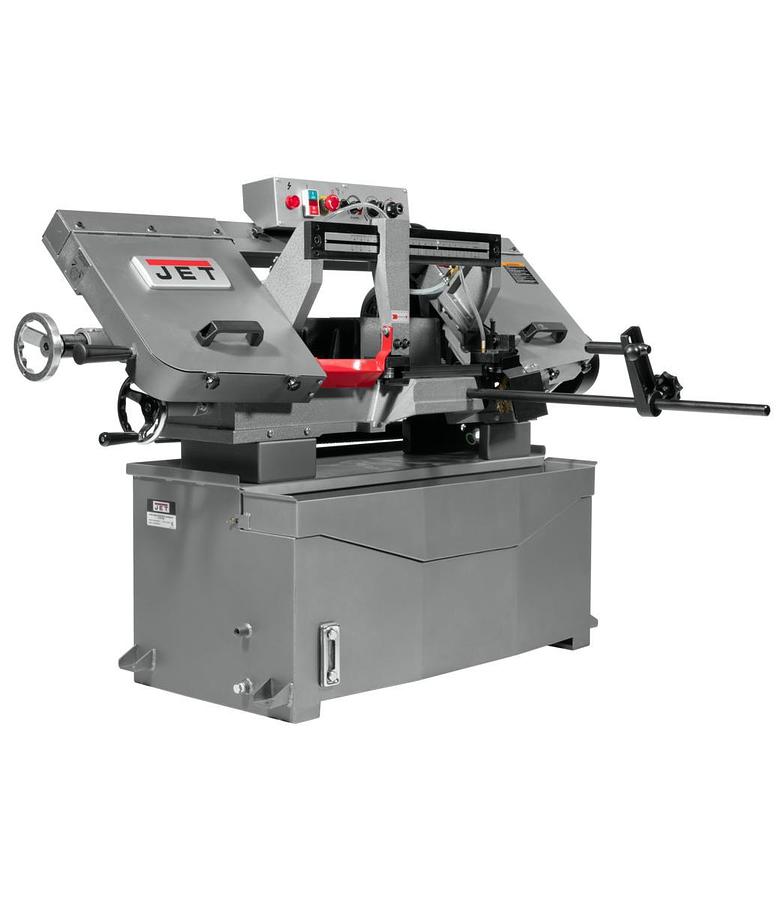

HBS-916EVS, 9" x 16" EVS (Electronic Variable Speed) Horizontal Bandsaw

or
Call (954)444-4004

Description

Electronic variable speed, oversized removable chip tray, large handwheel, built-in gauge, blade guides and quick-positioning vise that swivels to 45°are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time.


  • Adjustable Material Stop
  • Built-in, self-propelled blade brush extends blade life
  • Carbide blade guides feature parallel double-row ball bearing support
  • Coolant is distributed through the blade guides
  • Electronically controlled blade speed from 82 - 330 SFPM
  • Fully adjustable hydraulic downfeed with separate on/off control valve
  • Standard coolant system with coolant is distributed through the blade guides

    • Show All

    Specifications

    ManufacturerJettools
    ModelHBS-916EVS
    ConditionNew
    Stock NumberJT9-424469
    Amperage5
    Amperage Draw @ 115V 1Ph5
    Bed Height (In.)23.5
    Blade Length (In.)119-1/2
    Blade Speed (SFPM)EVS 82 - 330
    Blade Speeds (SFPM)(EVS ) 82-330
    Blade Wheel Diameter (In.)13
    Cutting Capacity (W x D) (In.)9 x 16
    DriveEVS
    Motor (HP)1-1/2
    Overall Dimensions (L x W x H) (In.)67 x 25 x 46-1/4
    Prewired Voltage (V.)115
    Prop 65None
    Rectangle at 45 Degrees (In.)9 x 6-1/8
    Rectangle at 90 Degrees (In.)8-1/2 x 14 and 2 x 16
    Round at 45 Degrees (In.)6-1/8
    Round at 90 Degrees (In.)9
    Shipping Dimensions (L x W x H) (In.)67 x 25 x 46-1/4
    Shipping Weight (Lbs.)818
    Vise Swivels (Deg.)45°
    Warranty2 Year
    Gross Weight704.0
    Net weight625.0
    Overall Assembled (Bow Raised) (L x W x H)65 x 25 x 67
