315mm Ferrous Manual Cold Saw | CS-315

or
Call (954)444-4004

Description

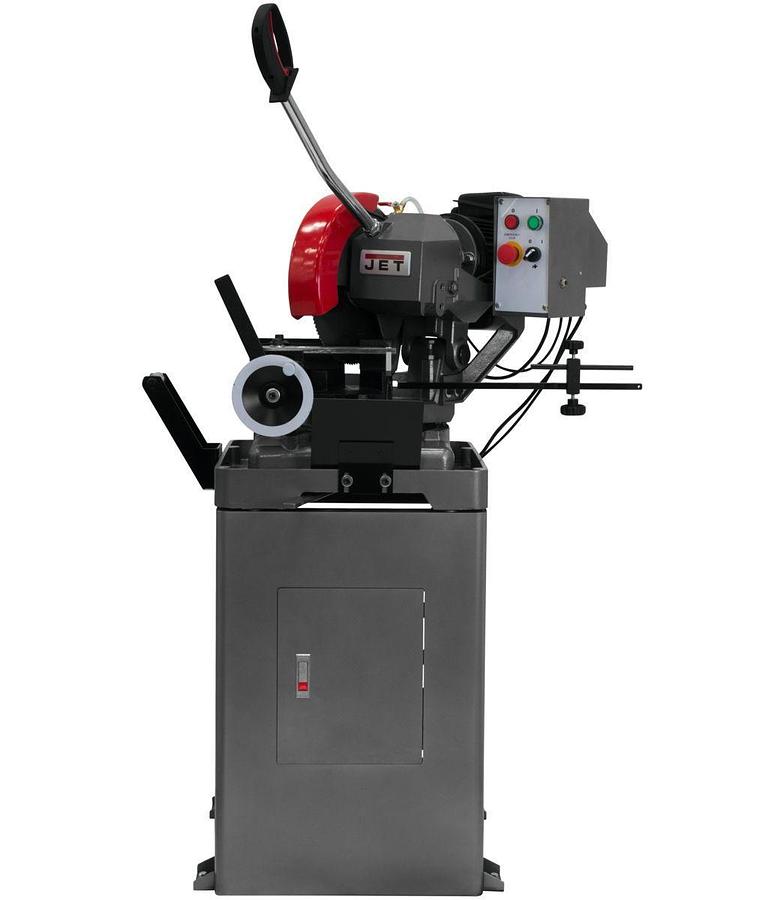

JET CS-315 12" Ferrous Manual Cold Saw (414227)

JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty


  • Blade drive reduction gearbox operates in an oil bath for increased durability
  • Cast iron frame
  • Flood coolant system
  • Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
  • Fully adjustable material depth stop for sawing repeatability and increased production
  • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
  • Heavy-duty cast iron frame base with easy access storage provides a stable cutting platform
  • Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
  • Quick tension and release mitering capabilities with stops at 45° right, 45° left
  • Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards

    • Show All

    Specifications

    ManufacturerJettools
    ModelCS-315
    ConditionNew
    Stock NumberJT9-414227
    Maximum Vise Opening (In.)4-11/16
    Motor (HP)2HP, 230V, 3Ph 2/4P, 7/5.8 Amps
    Prop 65Cancer and Reproductive Harm
    Solid Rectangle at 45 Degrees (In.)3-3/16 x 2-19/32
    Solid Rectangle at 90 Degrees (In.)3-3/16 x 3-3/16
    Solid Round at 45 Degrees (In.)3-1/2
    Solid Round at 90 Degrees (In.)3-1/2
    Solid Square at 45 Degrees (In.)2-19/32 x 2-19/32
    Solid Square at 90 Degrees (In.)3-1/8 x 3-1/8
    Style (Type)Ferrous
    Tubing Rectangle at 90 Degrees (In.)4 x 3-3/16
    Tubing Round at 45 Degrees (In.)3-1/2
    Tubing Round at 90 Degrees (In.)3-1/2
    Warranty2 Year
    Gross Weight450.0
    Net weight390.0
