Description

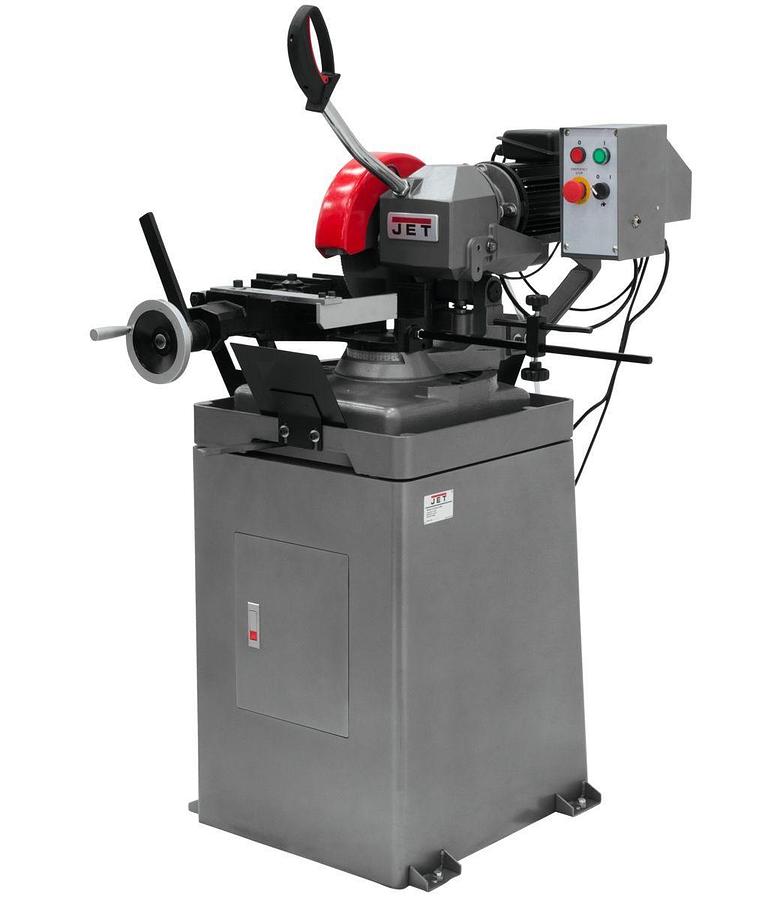

CS-275, 275mm 1-Phase Ferrous Manual Cold Saw

JET Cold Saws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. Designed with heavy-duty cast iron frame base which offers easy access storage and provides a stable cutting platform. All backed by the industry leading full service Two Year Warranty.


  • 275mm (10") Ferrous Cold Saw for steel, stainless and tough to cut alloys
  • Blade drive reduction gearbox operates in an oil bath for increased durability
  • Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
  • Fully adjustable material depth stop for sawing repeatability and increased production
  • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
  • Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
  • Quick tension and release mitering capabilities with stops at 45° right, 45° left
  • Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
  • Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards

    • Show All

    Specifications

    ManufacturerJettools
    ModelCS-275-1
    ConditionNew
    Stock NumberJT9-414228
    Blade Speeds (RPM)54.0000
    Maximum Vise Opening (In.)4
    Motor (HP)1-1/2HP, 115/230V Prewired 115V, 15.68/7.8 Amps
    Prop 65Cancer and Reproductive Harm
    Solid Rectangle at 45 Degrees (In.)2-3/16 x 2
    Solid Rectangle at 90 Degrees (In.)3-3/32 x 2
    Solid Round at 45 Degrees (In.)3-19/64
    Solid Round at 90 Degrees (In.)3-19/64
    Solid Square at 45 Degrees (In.)2-3/16 x 2-3/16
    Solid Square at 90 Degrees (In.)2-1/2 x 2-1/2
    Style (Type)Ferrous
    Tubing Rectangle at 45 Degrees (In.)2-3/16 x 2
    Tubing Rectangle at 90 Degrees (In.)3-3/32 x 2
    Tubing Round at 45 Degrees (In.)3-19/64
    Tubing Round at 90 Degrees (In.)3-19/64
    Warranty2 Year
    Gross Weight390.0
    Net weight390.0

    Documents
