Abrasive Cut-Off Saw 3PH 230V | AB-14

or
Call (954)444-4004

Description

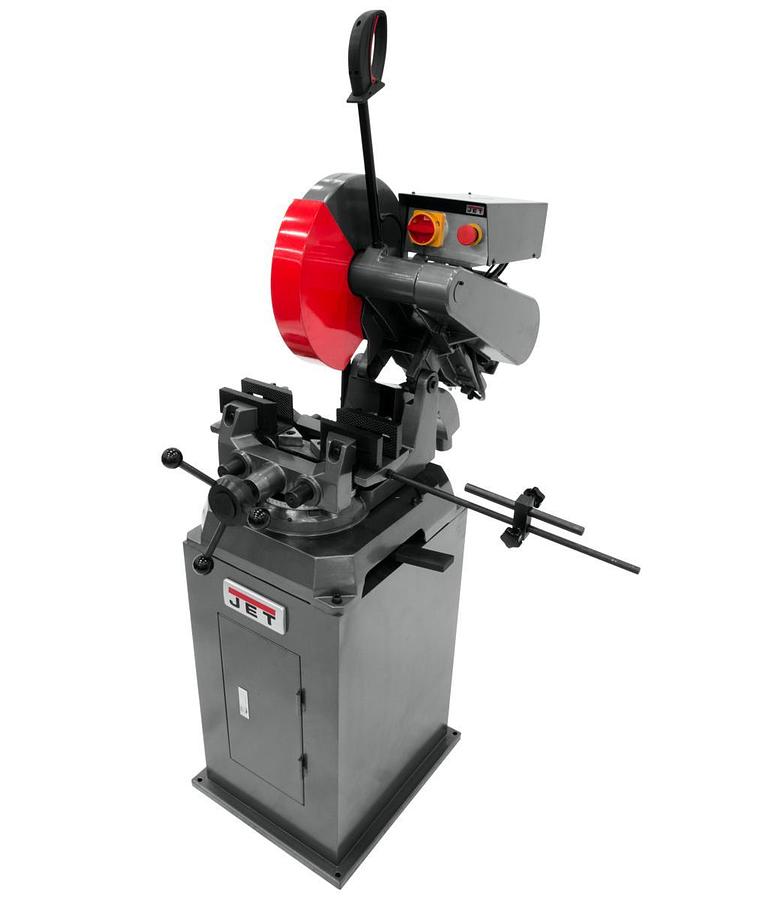

AB-14 ABRASIVE SAW 3PH 230VV

JET Abrasive Saws define durability. The casted head reduces vibration and delivers precise cutting for years. The spring loaded whole hand trigger makes the cutting action smooth, and the cast blade guard keeps operators safe.


  • Cast iron wheel guard
  • CSA/CUS Certified
  • Dust collection hook-up on spark arrester
  • Following strict guidelines and electrical requirements, these JET saws are CSA/CUS certified
  • Ground vise plates for extra grip
  • Heavy Duty Steel Cabinet, providing stability and reducing vibration .
  • Indexed position locks for quick angle adjustment at 90° and +/- 45°
  • Spark arrester/spark guide for safety
  • Whole hand trigger switch

    • Show All

    Specifications

    ManufacturerJettools
    ModelAB-14
    ConditionNew
    Stock NumberJT9-414245
    Maximum Vise Opening (In.)5.7
    Motor (HP)5HP, 230/460V, 3Ph
    Overall Dimensions (L x W x H) (In.)43.3 x 20.9 x 71.3
    Prop 65Cancer and Reproductive Harm
    Solid Rectangle at 45 Degrees (In.)3.5 x 3.9
    Solid Rectangle at 90 Degrees (In.)3.1 x 4.7
    Solid Round at 45 Degrees (In.)4.1
    Solid Round at 90 Degrees (In.)4.7
    Solid Square at 45 Degrees (In.)3.5 x 3.5
    Solid Square at 90 Degrees (In.)4.1 x 4.1
    Style (Type)Abrasive Saw
    Warranty2 Year
    Gross Weight563.0
    Net weight396.0
