JWS-20CS, 20-Inch Spindle Shaper, 1.5 HP, 1Ph 115/230V

or
Call (954)444-4004

Description

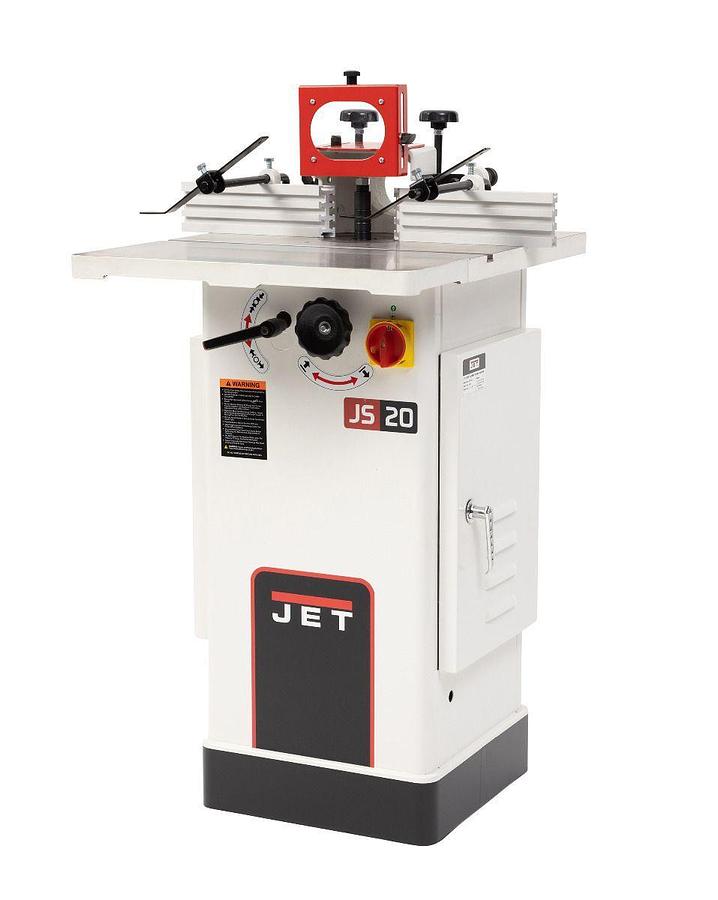

If you're looking for a space-saving shaper for your shop, the JET JWS-20CS Shaper is what you need. This compact powerhouse features an 8,000 and 10,000 RPM reversing 1-1/2HP motor. The sleek 18"(L) X 20"(W) precision-ground cast iron table provides a durable work area for various projects. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4” dust port. When add the new JET JWS-20CS Shaper in your shop today, you'll know why JET products are "Built Better to Build Better".


  • Powerful 1-1/2 HP motor delivers dependable power, even on heavy jobs
  • Independent left and right fences feature micro-adjustment and have zero-clearance capability
  • Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
  • Forward/reverse switch for left and right hand operation
  • Extra-large handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
  • 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits
  • Two adjustable work hold-downs to secure your work while shaping
  • Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters

    • Show All

    Specifications

    ManufacturerJettools
    ModelJT9-724020
    ConditionNew
    Stock NumberJT9-724020
    Dust Collection Minimum CFM Required (CFM)300
    Dust Port Outside Diameter (In.)4
    Electrical ControlsManual
    Fence Size (L x H) (In.)10 x 3
    Motor Amps15/7.5
    Motor Phase1
    Motor Power (HP)1-1/2
    Motor Voltage (V.)115/230
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    ReversibleYes
    Router Bit Collet Included1/2
    Spindle Speed (RPM)8,000 & 10,000
    Spindle Travel (In.)2
    Style (Type)Floor standing Model
    Table Height from Floor (In.)33-1/2
    Table Size (L x W) (In.)18 (L) x 20 (W)
    Warranty5 Year
    Gross Weight220.0
    Net weight198.0
