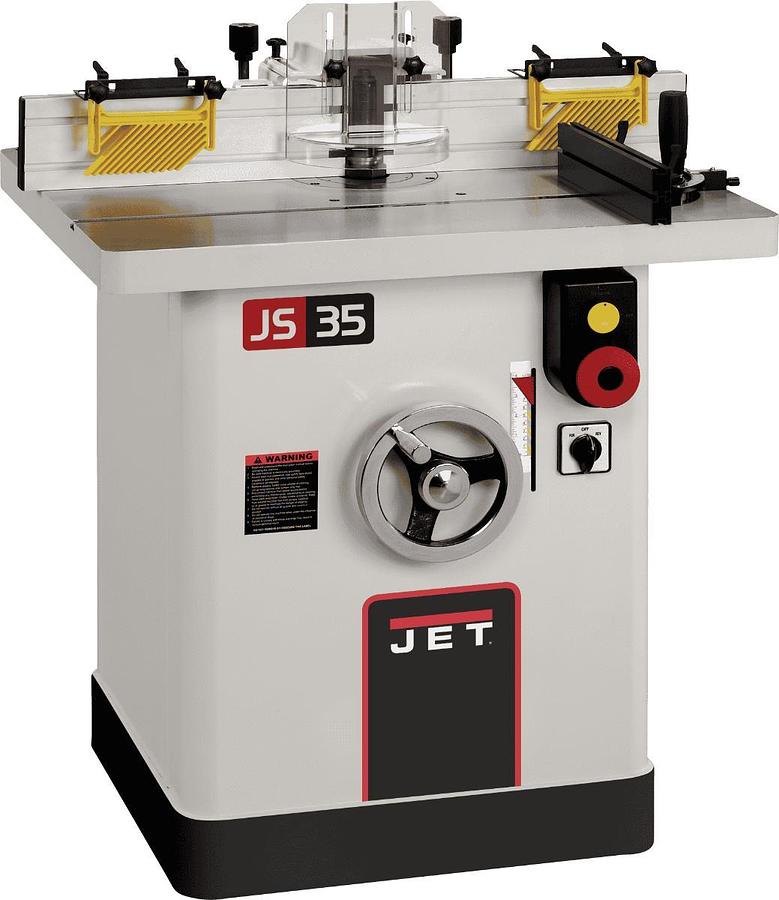

JWS-35X3-1 Shaper 3HP, 1Ph

or
Call (954)444-4004

Description

This heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.


  • 4" Dust port built into fence for convenient hookup to any dust collection system
  • Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters
  • Large 26-3/4” x 32-1/4” precision-ground cast iron table provides a durable work area and is predrilled for power feeder
  • Poly-V-belt transfers maximum power to the spindle
  • Powerful 3HP, 1Ph motor with magnetic controls
  • Reversible spindle speeds for diverse shaping jobs
  • Starting Pins for irregular shaping
  • V-belt transfers maximum power to the spindle

    • Show All

    Specifications

    ManufacturerJettools
    ModelJWS-35X3-1
    ConditionNew
    Stock NumberJT9-708323
    Dust Collection Minimum CFM Required (CFM)600
    Dust Port Outside Diameter (In.)4
    Maximum Spindle Diameter (In.)1-1/4
    Motor Amps14
    Motor Power (HP)3
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Spindle Size Under Nut (In.)4
    Spindle Travel (In.)4
    Table Height from Floor (In.)33-1/4
    Table Inserts (In.)2
    Table Opening Diameter (In.)6-19/64
    Table Size (L x W) (In.)32-1/4 x 26-3/4
    Warranty5 Year
    Gross Weight550.0
    Net weight473.0
