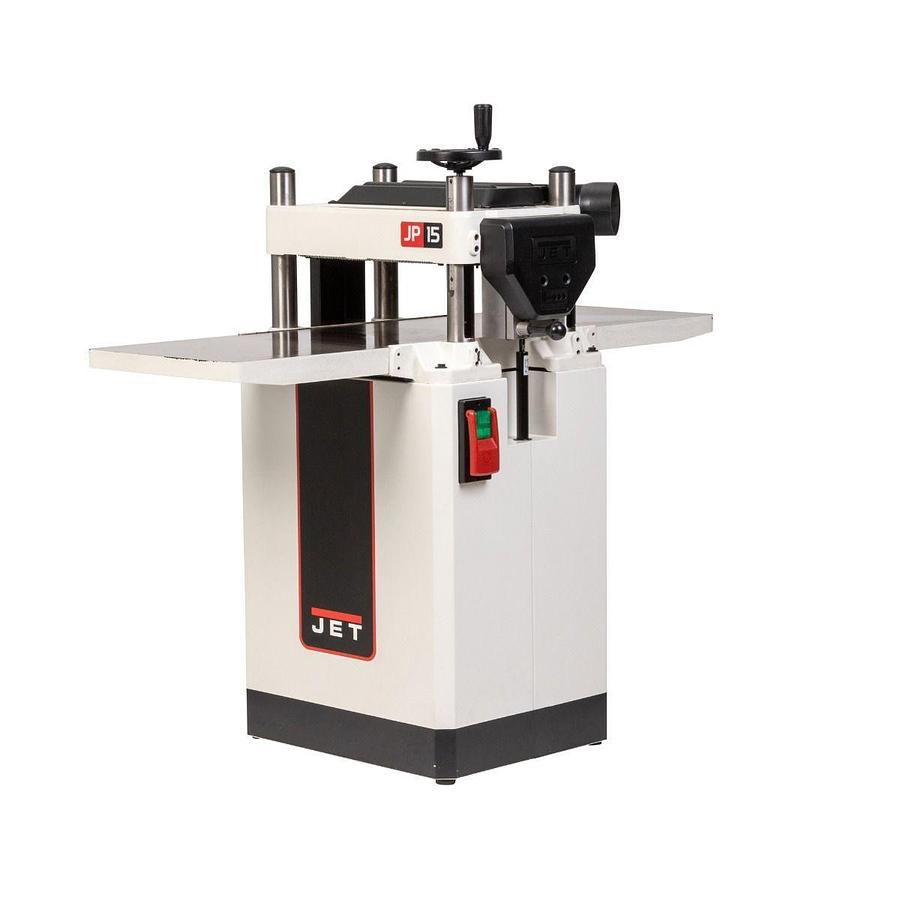

15" JET Helical Cutterhead Planer, JWP-15BHH

or
Call (954)444-4004

Description

The New JET 15” helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor with v-belt transmission combined with a Helical Cutterhead housing 48 staggered carbide quick change knives. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. The conveniently located two-speed gear box allows for quick and easy feed rate adjustments while removing up to 1/8-inch material with each pass for a smooth finish. A heavy-duty precision ground cast-iron table and infeed/outfeed tables provides support for larger work pieces, making this planer a beautiful addition to the shop.


  • 4" Dust Port hooks up to dust management system and helps keep shop clean
  • Dual infeed speed control for 16fpm or 20fpm maximizes cut efficiency
  • Dust Port hooks up to dust management system and helps keep shop clean
  • Large hand wheel with positive gear drive easily moves the head to the desired board thickness
  • Magnetic Switch with green safety light illuminates when powered
  • Maximum depth of cut 1/8", 6" cutting height and 15" width capacity

    • Show All

    Specifications

    ManufacturerJettools
    ModelJWP-15BHH
    ConditionNew
    Stock NumberJT9-722155
    Cutterhead Speed (RPM)5200.0000
    Dust Port Outside Diameter (In.)4
    Motor Amps11
    Motor Power (HP)3
    Motor Voltage (V.)230
    Number of Knives48
    Number of Speeds2
    Prop 65Cancer and Reproductive Harm
    Style (Type)Floor standing Model
    Table Size (L x W) (In.)15 x 46.5 in.
    Type of CutterheadHelical Head
    Warranty5 Year
    Gross Weight330.5
    Net weight286.0
