16-1/2" Drill Press

or
Call (954)444-4004

Description

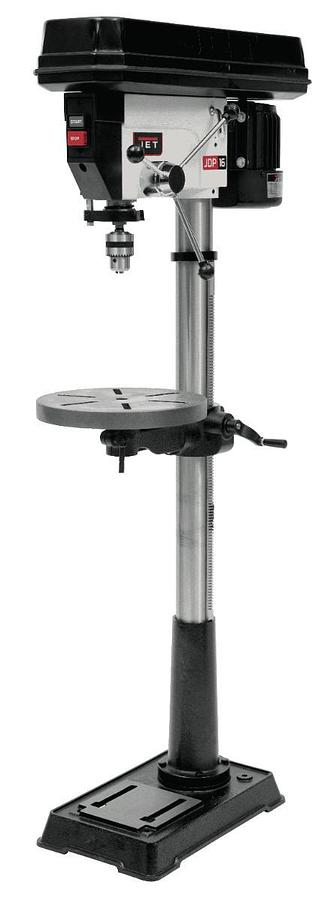

The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, work light, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.


  • X pattern mounting grooves in table allow mounting a fence when table is in reverse position
  • 16 Speeds lets you choose the best speed for the job
  • Adjustable tension spindle return spring
  • Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
  • Built-in work light (bulb not included) provides additional visibility of your work
  • Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
  • Hinged metal belt and pulley cover
  • Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
  • Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
  • Spindle has high-quality ball bearing construction for long life

    • Show All

    Specifications

    ManufacturerJettools
    ModelJDP-17MF
    ConditionNew
    Stock NumberJT9-354169
    Chuck Size (In.)5/8
    Column Diameter (In.)3-1/8
    Motor Amps9/4.5
    Motor Power (HP)3/4
    Number of Spindle Speeds16
    Prop 65Cancer and Reproductive Harm
    Spindle Distance to Table (Max.) (In.)29-1/8
    Spindle Travel (In.)4-3/8
    Style (Type)Floor standing Model
    Swing (In.)16-1/2
    Table Size (L x W) (In.)13-3/4
    Warranty5 Year
    Gross Weight209.0
    Net weight209.0
