17" Drill Press

or
Call (954)444-4004

Description

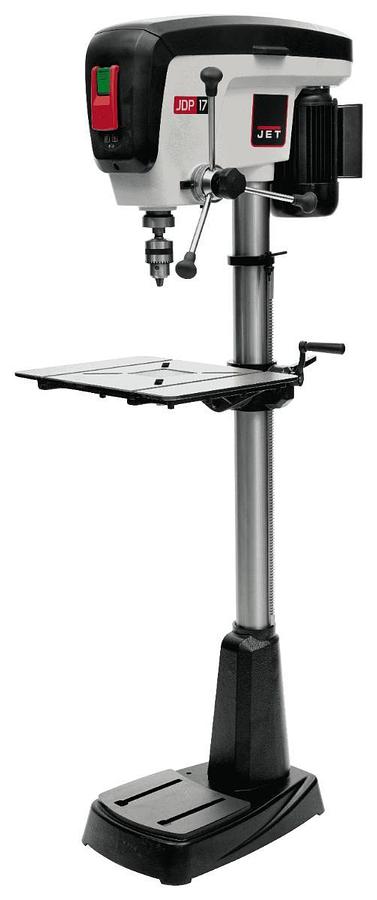

Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping. CSA Certified.


  • Integrated depth stop makes repetitive drilling quick and easy
  • Large cast iron base provides stability
  • One-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
  • Replaceable MDF table insert
  • Table edge lip designed to make clamping easy
  • Xacta-X laser system easily identifies the drill center

    • Show All

    Specifications

    ManufacturerJettools
    ModelJDP-17
    ConditionNew
    Stock NumberJT9-716300
    Assembled Machine Dimensions (L x W x H) (In.)28-1/2 x 19 x 65
    Chuck Distance to Base (In.)42-7/8
    Chuck Distance to Table (In.)25-7/8
    Chuck Size (In.)5/8
    Column Diameter (In.)3-5/32
    Motor Power (HP)3/4
    Number of Spindle Speeds16
    Prop 65Cancer and Reproductive Harm
    Recommended Circuit Size (Amps.)15
    Spindle Distance to Base (In.)46-1/2
    Spindle Distance to Table (Max.) (In.)30
    Spindle Travel (In.)5
    Style (Type)Floor standing Model
    Swing (In.)16-7/8
    Table Size (L x W) (In.)14 x 19
    Warranty5 Year
    Gross Weight198.0
    Net weight187.0
