15" Floorstanding Drill Press

or
Call (954)444-4004

Description

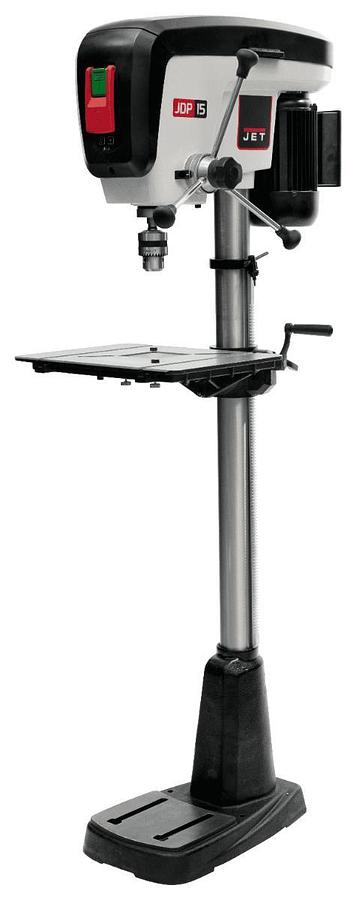

The JET JDP-15F, 15” Floor Standing Drill Press. From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press
features a long-lasting, built-in LED work light to provide direct
lighting while reducing shadows. Another feature includes the one-handed belt-tensioning system and a large 12-1/2" x 17" work table which are all CSA Certified.


  • Integrated depth stop makes repetitive drilling quick and easy
  • Large cast iron base provides stability
  • One-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
  • Replaceable MDF table insert
  • Table edge lip designed to make clamping easy
  • Xacta-X laser system easily identifies the drill center

    • Show All

    Specifications

    ManufacturerJettools
    ModelJDP-15F
    ConditionNew
    Stock NumberJT9-716250
    Assembled Machine Dimensions (L x W x H) (In.)27 x 17 x 63-1/4
    Chuck Size (In.)5/8
    Column Diameter (In.)2-3/4
    Motor Power (HP)3/4
    Motor Voltage (V.)115
    Number of Spindle Speeds16
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Spindle Distance to Base (In.)46-1/2
    Spindle Distance to Table (Max.) (In.)30-1/2
    Spindle Travel (In.)3-1/8
    Style (Type)Floor standing Model
    Swing (In.)15
    Table Size (L x W) (In.)12-1/2 x 17
    Warranty5 Year
    Gross Weight183.0
    Net weight172.0
