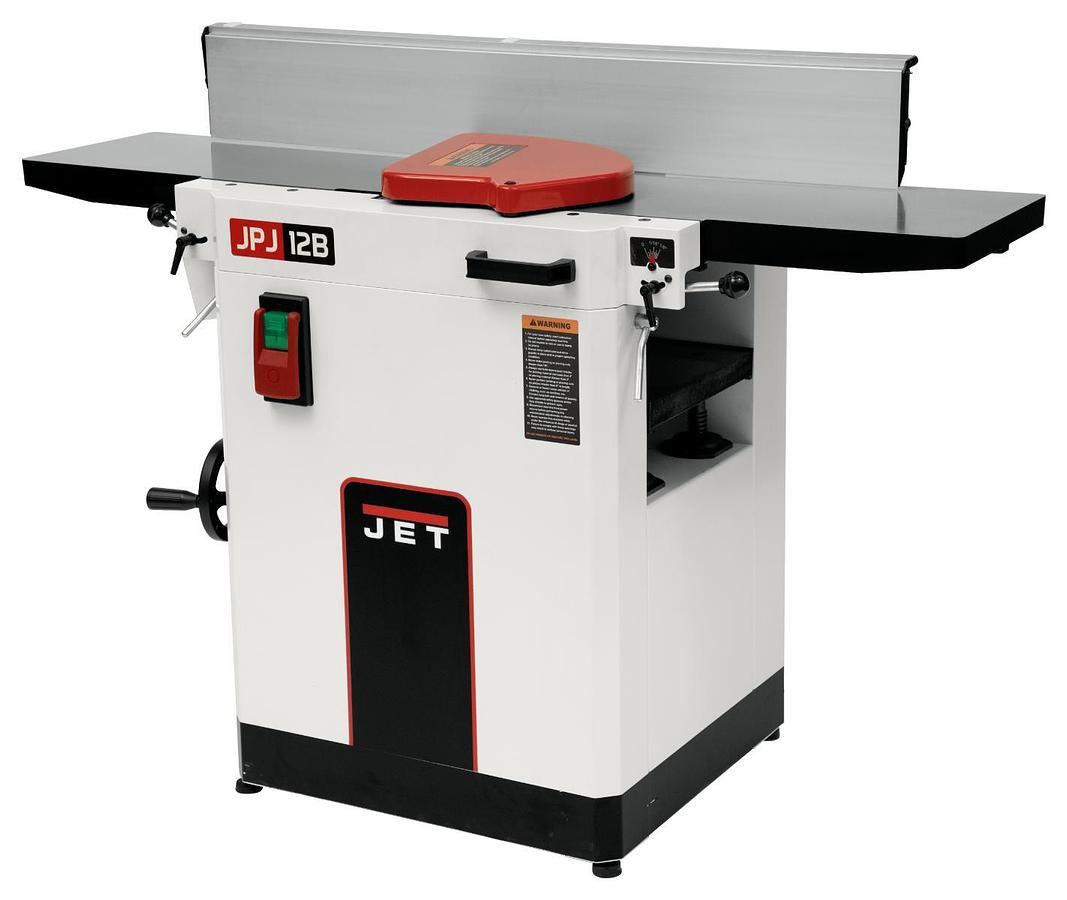

12" Planer / Jointer 3HP | JPJ-12B
Description
You don’t have to choose between buying a jointer or a planer – with the JPJ-12B, you can have both. Leave it to JET to design a machine that allows quick changeover between jointing and planing functions. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.
Specifications
| Manufacturer | Jettools |
| Model | JPJ-12B |
| Condition | New |
| Stock Number | JT9-715100 |
| Cuts Per Minute | 15,900 |
| Cutterhead Diameter (In.) | 2-3/4 |
| Cutterhead Speed (RPM) | 5300.0000 |
| Dust Collection Minimum CFM Required (CFM) | 550 |
| Dust Port Outside Diameter (In.) | 4 |
| Feed Rate - Planing (FPM) | 2 speed 16 to 26 FPM |
| Fence Positive Stops (Deg.) | 90 and 45 R |
| Fence Size (L x H) (In.) | 43-1/4 x 5-7/8 |
| Fence Tilt (Deg.) | 90 to 45 R |
| Jointer Cutting Capacity (W x D) (In.) | 12 x 1/8 |
| Jointer Table Size (L x W) (In.) | 55x12-1/32 |
| Maximum Depth of Cut - Planing (In.) | 5/32 |
| Maximum Planing Thickness (In.) | 8-3/4 |
| Maximum Planing Width (In.) | 12 |
| Minimum Planing Length (In.) | 10 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Number of Knives | 3 |
| Overall Dimensions (L x W x H) (In.) | 55-7/16 x 28-15/16 x 40 |
| Overall Height (In.) | 40 |
| Planer Cutting Capacity (W x D) (In.) | 12 x 8-3/4 |
| Planer Table Size (L x W) (In.) | 25 X 12-1/32 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 30 |
| Standard Knife Size (L x W x T) (In.) | 12-3/16 x 11/16 x 1/8 |
| Type of Cutterhead | Straight Knife |
| Warranty | 5 Year |
| Gross Weight | 607.0 |
| Net weight | 453.0 |
| Full Load Amps | 15 |
| Running Amps | 4.5 |
