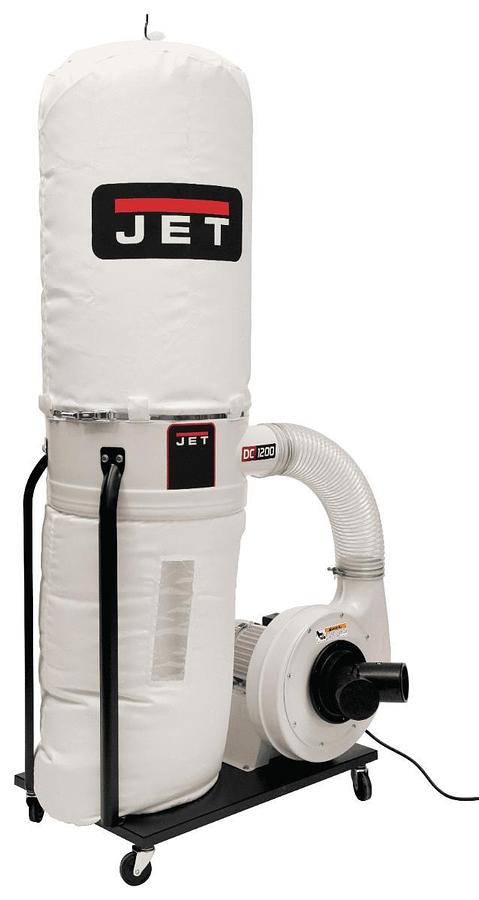

DC-1200VX-BK1 Dust Collector, 2HP 1PH 230V, 30-Micron Bag Filter Kit

or
Call (954)444-4004

Description

The JET DC-1200VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.


  • Eliminates premature filter clogging for sustained performance
  • High air velocity (CFM) design stands up to any competitive specifications
  • Includes four casters for maneuverability and total portability
  • Industrial controls designed for years of trouble-free use
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • Single-stage design for economical and quiet operation
  • Vortex Cone improves chip separation and collector bag packing efficiency

    • Show All

    Specifications

    ManufacturerJettools
    ModelDC-1200VX-BK1
    ConditionNew
    Stock NumberJT9-710701K
    1-Hose Connection Diameter (In.)6
    2-Hoses Connection Diameter (In.)4
    Air Flow @ 4" (CFM)1200
    Bag Diameter (In.)20
    Collection Bag Capacity (Cu. Ft.)5-3/10
    Collection Bag Length (In.)29
    Efficiency (Micron)30
    Impeller Diameter (In.)12
    Impeller MaterialSteel
    Motor Amps8
    Motor Power (HP)2
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Sound Rating (Db.)80 - 85
    Static Pressure (Wc.)11-1/2
    Style (Type)Bag
    Velocity @ 4" (FPM)13,745
    Warranty5 Year
    Gross Weight150.0
    Net weight138.0

    Documents
