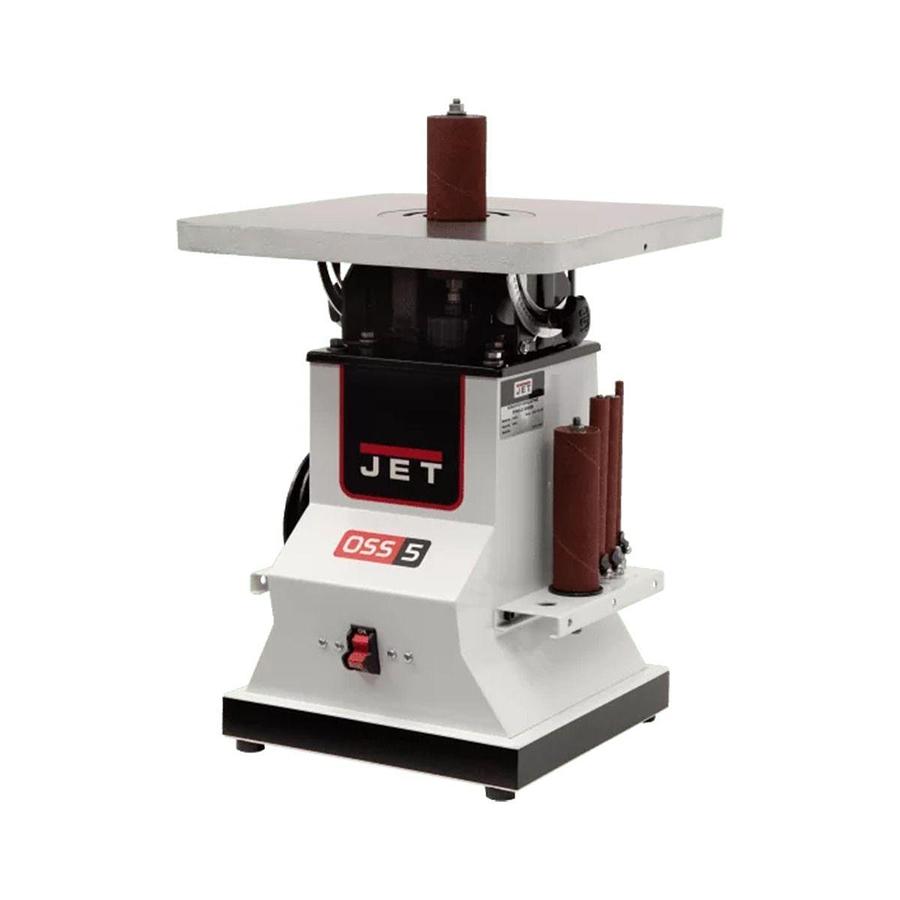

JBOS-5, Benchtop Oscillating Spindle Sander, 1/2HP, 1Ph 115V

or
Call (954)444-4004

Description

The JBOS-5 Benchtop Spindle Sander has a powerful 1/2HP induction motor and a large 14-1/2” table that tilts to 45° which easily handles the toughest sanding projects. A heavy-duty worm gear system provides one-inch oscillating action, which prolongs sleeve life and helps prevent burnishing of the workpiece. Four inserts are provided, and 5 spindles with sanding sleeves.


  • 1" Oscillating action reduces friction heat to protect wood and prolong sleeve life
  • Built-in storage racks keep spindles and table inserts handy
  • Four table inserts are provided (3/4" and 1" Oblong, 3/4" and 1" Round), to prevent dust and debris from falling into the motor and help protect operator
  • Includes 1/4", 1/2", 5/8", 1-1/2", 2" spindle assemblies with 100 grit paper
  • Includes four non-skid rubber feet keep machine stable during use
  • Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
  • Oscillation gears run in a sealed lubricated box to prolong their life and durability
  • Spindles have threaded ends for quick, easy changes

    • Show All

    Specifications

    ManufacturerJettools
    ModelJBOS-5
    ConditionNew
    Stock NumberJT9-708404
    Warranty5 Year
    Dust Port Outside Diameter (In.)2
    Spindle Speed (RPM)1,725
    Oscillations Per Minute30
    Oscillation Stroke (In.)1
    Table Size (L x W) (In.)14-1/2 x 14-1/2
    Motor Amps3
    Motor Phase1
    Motor Power (HP)1/2
    Prop 65Cancer and Reproductive Harm
    Style (Type)Benchtop
    Gross Weight82.0
    Net weight75.6
