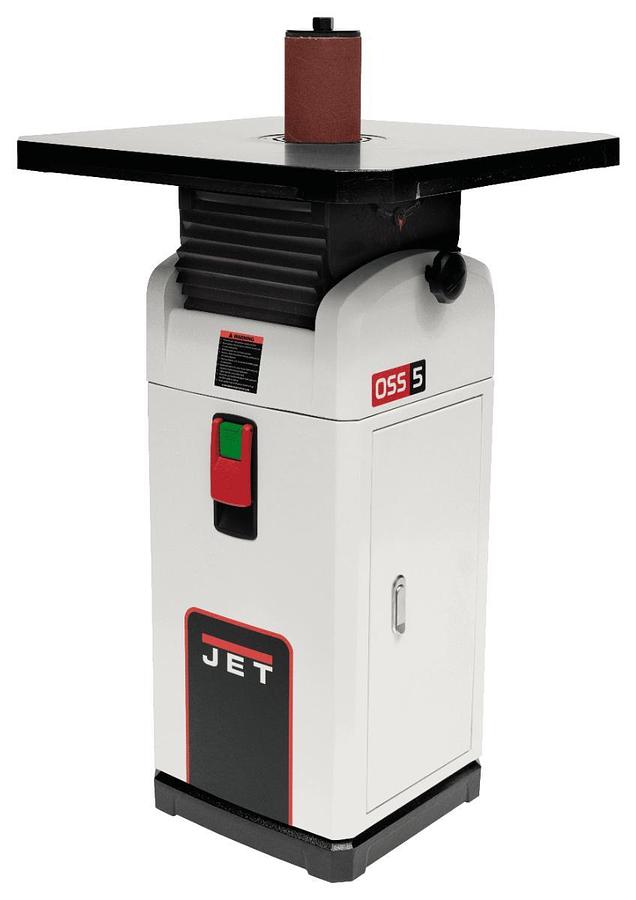

JOSS-S, Floor Model Oscillating Spindle Sander, 1HP, 1Ph, 115V

or

Call (954)444-4004

Description

24 1/2" x 24 1/2" Table

115/230 volts

75 Oscillations per minute

6 Table inserts

Are you ready to take the hassle out of sanding? The JET Oscillating Spindle Sander is designed to deliver what you need in one fantastic machine. Featuring a spindle lock and threaded ends for quick and easy changes as well as a superior dust collection and integrated storage for inserts makes this sander have it all. Experience a machine, and results, that are Polished At Every Angle.

1-1/2" Oscillating action reduces friction heat to protect wood and prolong sleeve life

Baffles create a chamber under the table for improved dust collection

Includes 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", 2", 3" and 4" spindle assemblies

Integrated paddle switch with safety key

Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance

Powerful 1HP motor is independently mounted inside the base for easy access and service

Sealed access door minimizes dust in the storage area

Table tilts 45° front and 15° back and features a 90° quick index

Worm and gear mechanism runs in an oil bath to prolong its life and durability

Specifications

Manufacturer	Jettools
Model	JOSS-S
Condition	New
Stock Number	JT9-723950
Warranty	5 Year
Dust Collection Minimum CFM Required (CFM)	300
Dust Port Outside Diameter (In.)	4
Spindle Speed (RPM)	1720
Oscillations Per Minute	75
Table Size (L x W) (In.)	24-1/2 x 24-1/2
Table Height from Floor (In.)	39-3/16
Motor Amps	11/5.5
Motor Phase	1
Motor Power (HP)	1
Motor Voltage (V.)	115/230
Overall Dimensions (L x W x H) (In.)	24 1/2 x 24 1/2 x 44 3/16
Prop 65	Cancer and Reproductive Harm
Prewired Voltage (V.)	115
Style (Type)	Oscillating Spindle Sander
Table Tilt (Deg.)	45 front/ 15 back
Gross Weight	256.0
Net weight	216.0

Documents

joss-s-2c_floor_model_oscillating_spindle_sander-2c_1hp-2c_1ph-2c_115v-pdf
