Description

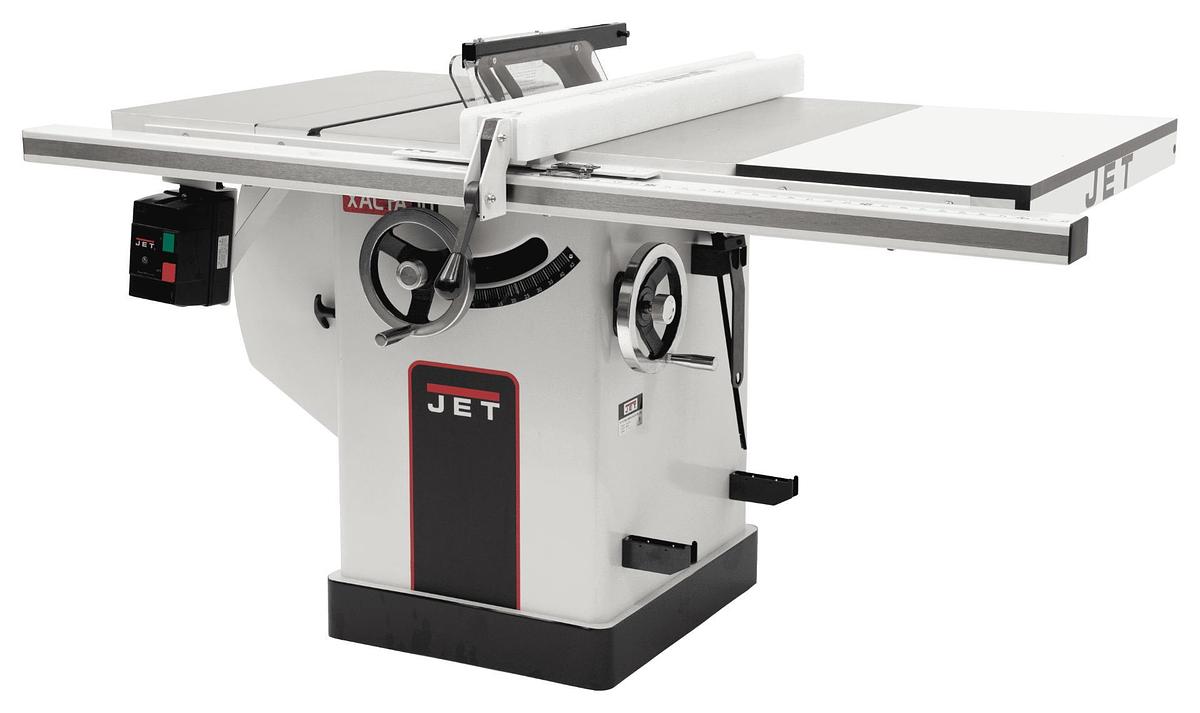

If you've ever wondered about what a table saw can really do, look no further. Introducing the JET® 10" Deluxe XACTA® saw. The quick release riving knife and integrated push button arbor lock keeps the operator safe and more efficient. The Deluxe XACTA® saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on.

Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters

Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement

Hinged motor cover on cabinet gives quick access to the motor and belts

Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt

Left and right cast iron extension wings

Powder coated paint for a long-lasting, chip-resistant finish

Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning

Rail-mounted magnetic switch is easy to reach and provides overload protection

Wide stance heavy-duty trunnion for stability and smooth blade positioning

Specifications

Manufacturer	Jettools
Model	JTAS-10XL30-DX
Condition	New
Stock Number	JT9-708674PK
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Right of Blade (In.)	30
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	Deluxe
Motor Amps	14.5
Motor Phase	Single
Motor Power (HP)	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Style (Type)	Cabinet
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	10
Table Size (L x W) (In.)	29 x 20
Table Type	Cast Iron
Warranty	5 Year
Gross Weight	490.0
Net weight	490.0

Deluxe Xacta® SAW 3HP, 1Ph, 30" Rip
