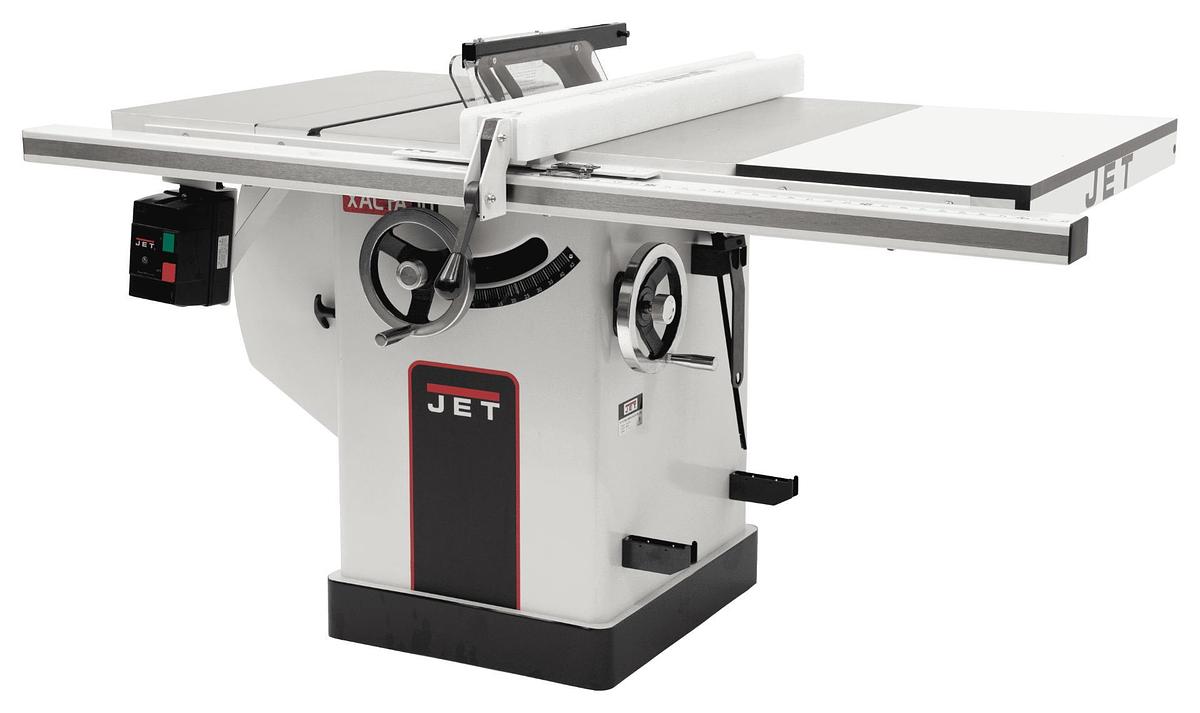

Deluxe Xacta® SAW 5HP, 1Ph, 30" RIP

or
Call (954)444-4004

Description

If you've ever wondered about what a table saw can really do, look no further. Introducing the JET® 10" Deluxe XACTA® saw. The quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The Deluxe XACTA® saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. Also includes an on-board fence and miter gauge storage.


  • Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
  • Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
  • Hinged motor cover on cabinet gives quick access to the motor and belts
  • Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
  • Left and right cast iron extension wings
  • Powder coated paint for a long-lasting, chip-resistant finish
  • Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
  • Rail-mounted magnetic switch is easy to reach and provides overload protection
  • Wide stance heavy-duty trunnion for stability and smooth blade positioning

    • Show All

    Specifications

    ManufacturerJettools
    ModelJTAS-10XL30-5/1DX
    ConditionNew
    Stock NumberJT9-708676PK
    Blade Diameter (In.)10
    Dust Collection Minimum CFM Required (CFM)350
    Dust Port Outside Diameter (In.)4
    Maximum Depth of Cut at 45 Degrees (In.)2-1/8
    Maximum Diameter of Dado (In.)8
    Maximum Rip Right of Blade (In.)30
    Maximum Width of Dado (In.)13/16
    Miter Gauge TypeDeluxe
    Motor Amps18
    Motor Power (HP)5
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Style (Type)Cabinet
    Table in Front of Saw Blade at Maximum Depth of Cut (In.)10
    Table Size (L x W) (In.)29 x 20
    Table TypeCast Iron
    Warranty5 Year
    Gross Weight490.0
    Net weight490.0
