JHJ-17-1/2L, 17-1/2-Ton Low Profile Hydraulic Bottle Jack

or
Call (954)444-4004

Description

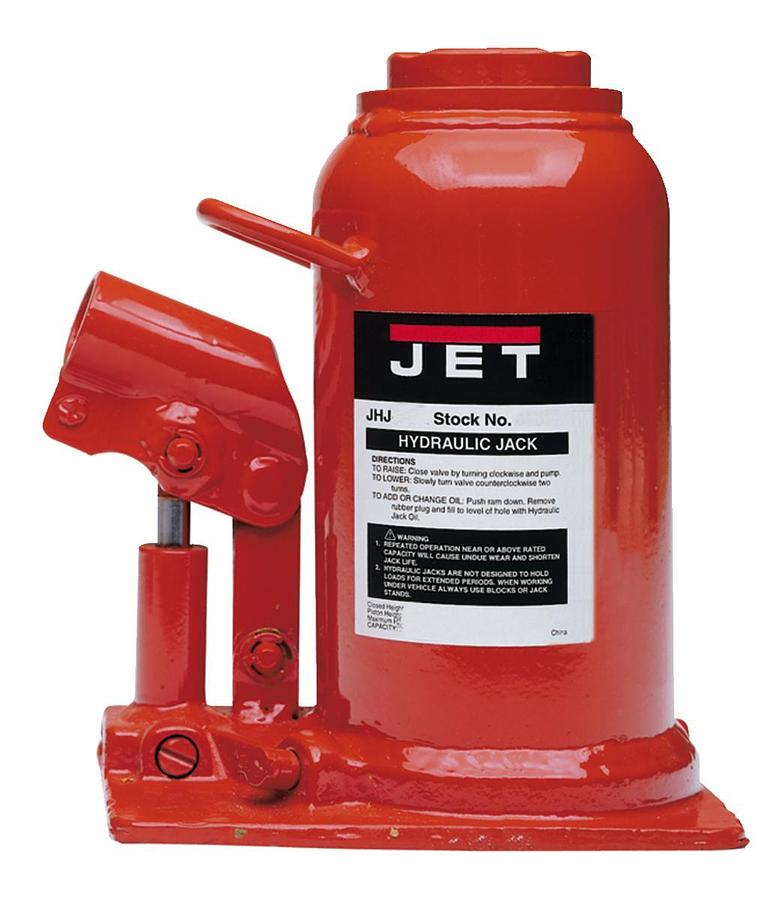

JET JHJ-17-1/2L, 17-1/2-Ton Low-Profile Hydraulic Bottle Jack (453318K)

JET®JHJ Series Hydraulic Bottle Jacks have capacities from 2 to 100 tons, and are available in standard and low profile heights. The pump piston and ram are chrome plated for added corrosive resistance increasing durability. Each JHJ model functions in upright, angled or horizontal positions for increased versatility. JET JHJ Series Hydraulic Bottle Jacks comply with ANSI/ASME B30.1 and PALD-1 standards.


  • Complies with ANSI/ASME B30.1 and PALD-1 Standard
  • Heavy-duty bases are electrically welded providing a stable platform
  • Hydraulic system is protected from damage by internal by-pass mechanism
  • Industrial-duty construction permits use in extreme climates
  • Lifting, pushing, spreading, bending, pressing or straightening capabilities
  • Operating temperature range from -4°F to 158°F
  • Precision machined and polished cylinders provide non-abrasive, leak-free,
  • Precision machined and polished cylinders provide non-abrasive, leak-free, durable performance
  • Pump handle included
  • Upright, horizontal or angled operating positions increase versatility

    • Show All

    Specifications

    ManufacturerJettools
    ModelJHJ-17 1/2L
    ConditionNew
    Stock NumberJT9-453318K
    Base Dimensions (L x W) (In.)7-1/8 x 4-5/8
    Head Diameter (In.)2-3/4
    Load Capacity (Tons)17-1/2
    Maximum Height (In.)13
    Minimum Height (In.)6-3/4
    Piston Height (In.)3-1/2
    Piston Lift (In.)3-1/2
    Prop 65Cancer
    Warranty2 Year
    Gross Weight17.6
    Net weight17.6
