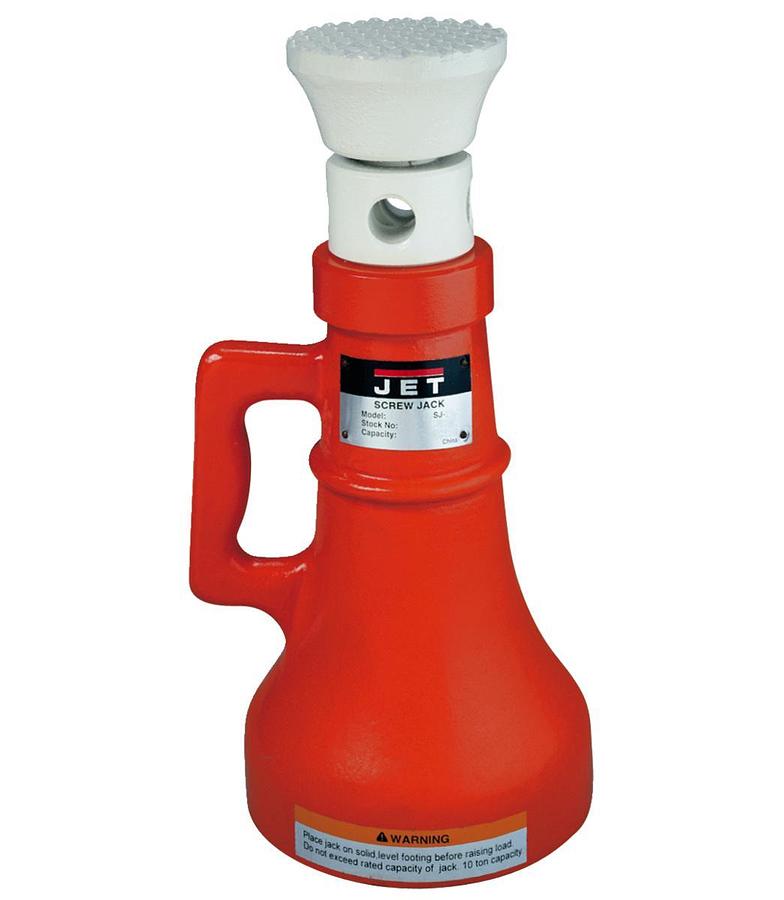

SJ-20T, 20-Ton Screw Jack

or
Call (954)444-4004

Description

SJ-20T, 20 Ton

JET® SJ Series Screw Jack is available in five capacities ranging from 5 to 25 Tons that hold the load without creeping. The cast bell shaped housing provides stability while the Jack design requires less effort to raise the load increasing productivity.


  • Complies with ANSI/ASME B30.1 standards
  • Corrugated Pivoting Head
  • Corrugated pivoting head, contours to the load providing maximum surface contact
  • Heavy-duty cast bell shaped base provides a stable foundation in multiple lifting environments
  • Improved design requires less effort to lift a maximum capacity load
  • Industrial design eliminates creeping when holding heavy loads
  • Turning bar not included (available separately)

    • Show All

    Specifications

    ManufacturerJettools
    ModelSJ-20T
    ConditionNew
    Stock NumberJT9-441320
    Bar Hole Size (In.)13/16
    Base Diameter (In.)6-7/8
    Base Size (In.)10-5/8 x 7-3/16
    Head Diameter (In.)4-1/8
    Height Closed (In.)15-13/16
    Height Extended (In.)25
    Load Capacity (Tons)20
    Prop 65Cancer and Reproductive Harm
    Screw Size (OD x L)2 x 12
    WarrantyLimited
    Gross Weight32.56
    Net weight32.56
