SJ-5T, 5-Ton Screw Jack

or
Call (954)444-4004

Description

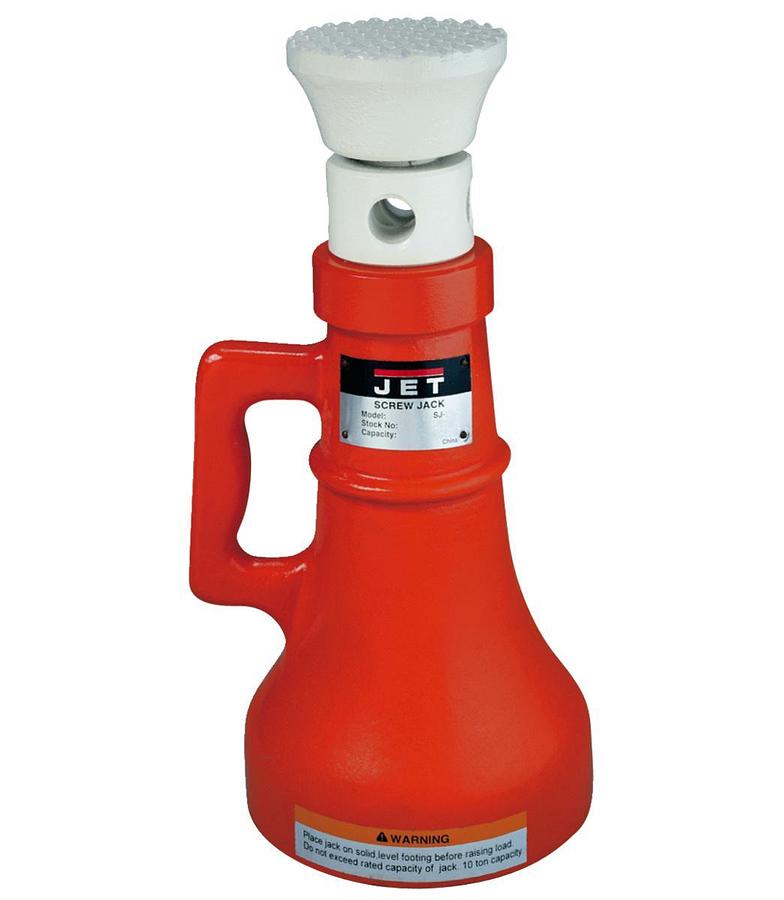

SJ-5T, 5 Ton

JET® SJ Series Screw Jack is available in five capacities ranging from 5 to 25 Tons that hold the load without creeping. The cast bell shaped housing provides stability while the Jack design requires less effort to raise the load increasing productivity.


  • Complies with ANSI/ASME B30.1 standards
  • Corrugated Pivoting Head
  • Corrugated pivoting head, contours to the load providing maximum surface contact
  • Heavy-duty cast bell shaped base provides a stable foundation in multiple lifting environments
  • Improved design requires less effort to lift a maximum capacity load
  • Industrial design eliminates creeping when holding heavy loads
  • Turning bar not included (available separately)

    • Show All

    Specifications

    ManufacturerJettools
    ModelSJ-5T
    ConditionNew
    Stock NumberJT9-441305
    Bar Hole Size (In.)9/16
    Base Diameter (In.)4-1/2
    Base Size (In.)4-15/16 x 7
    Head Diameter (In.)2-3/8
    Height Closed (In.)9-1/2
    Height Extended (In.)13
    Load Capacity (Tons)5
    Prop 65Cancer and Reproductive Harm
    Screw Size (OD x L)1 x 6
    WarrantyLimited
    Gross Weight10.0
    Net weight10.0
