JTJ-5ST, 5 Ton Hydraulic Toe Jack

or
Call (954)444-4004

Description

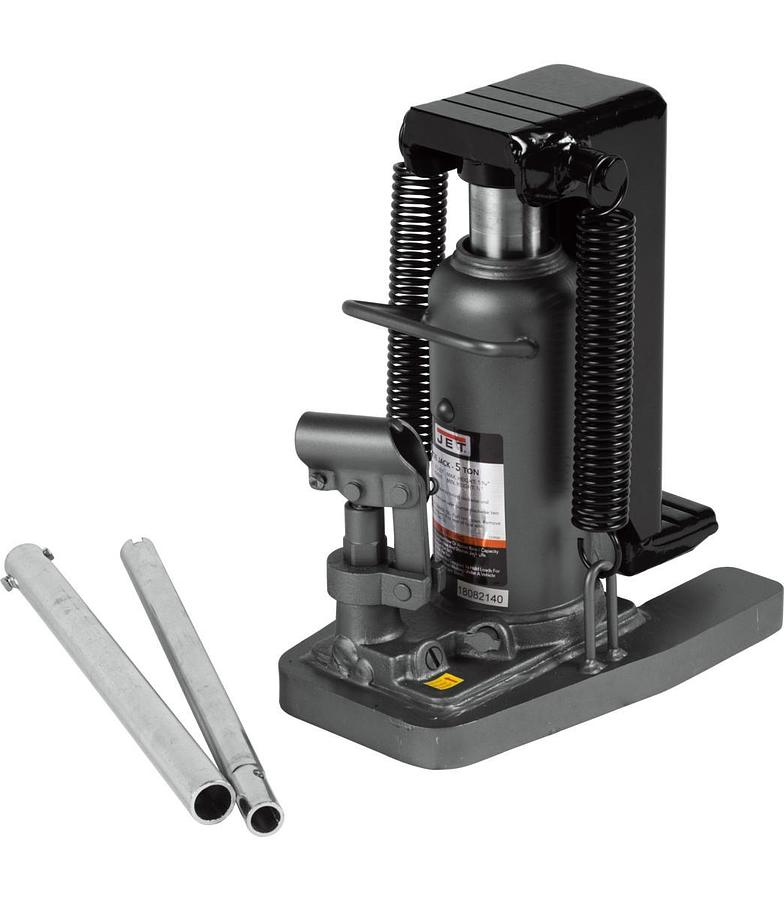

JTJ-5ST, 5 Ton Toe Jack

JET® JTJ Series Toe Jacks are heavy-duty, industrial, dual purpose jacks. They are designed for lifting loads with low or high clearances. This makes the JET Toe Jack ideal for house moving, machinery installation and applications at shipyards, bridge building, or plant construction sites. JET JTJ Series Toe Jacks comply with ANSI/ASME B30.1 standards.


  • Complies with ANSI/ASME B30.1 standards
  • Dual purpose jack designed for low or high clearances increases versatility
  • Electric welded bases and cylinders virtually eliminating leaks for proven reliability
  • Heat treated piston resists corrosion
  • Lifting, pushing, spreading, bending, pressing or straightening capabilities for multi-function use
  • Overload Protection valve prevents lifting loads past maximum capacity
  • Pump handle included
  • Spring assisted return and over-travel protection increases tool life

    • Show All

    Specifications

    ManufacturerJettools
    ModelJTJ-5ST
    ConditionNew
    Stock NumberJT9-454505
    Base Size (In.)10-5/8 x 7-3/16
    Head Maximum Height (In.)11-1/2
    Head Minimum Height (In.)11-1/2
    Prop 65Cancer and Reproductive Harm
    Rated Head Capacity (Tons)6
    Rated Toe Capacity (Tons)5
    Toe Lift (In.)4-11/16
    Toe Maximum Height (In.)5-3/4
    Toe Size (L x W) (In.)2-1/2 x 3
    Warranty2 Year
    Gross Weight48.5
    Net weight48.5

    Documents
