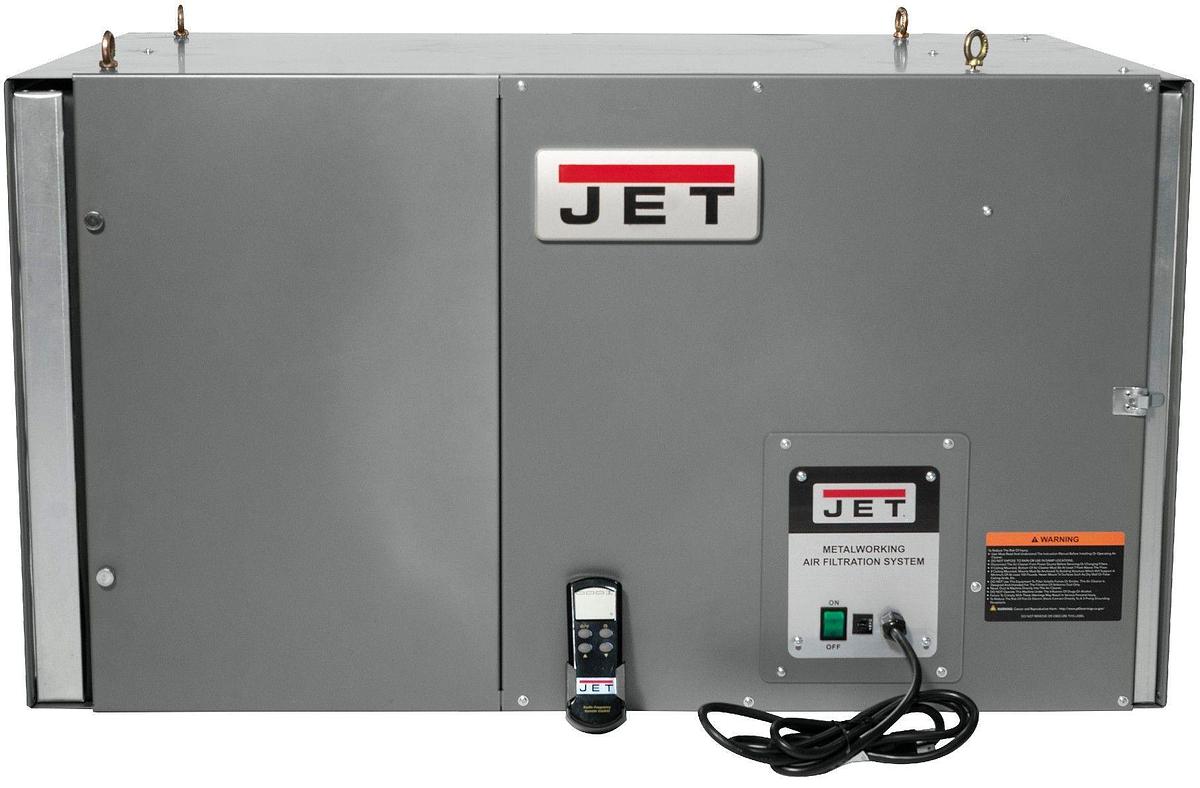

IAFS-3000 Industrial Air Filtration System, 3000 CFM, 1HP, 1Ph 230V

or

Description

IAFS-3000 3000 CFM Industrial Air Filtration System 1HP, 230V, Single Phase

JET Air Filtration is all about one thing; Workshop Safety. Metalworking specific air filters attract oil mist, smoke and dust generated during the metal processing, which could effect the health of the machinist. JET's units keep your shop cleaner and safer and allow you to spend more time on the job, and give you peace of mind while you are working in your shop. The optional charcoal filters help to eliminate odors as well.

Constructed of metal for years of use

Helps to extended the service life of the air conditioning equipment in the shop

Filters dust, smoke and oil mist in a closed or air conditioned workshop

Fully enclosed ball bearing motor with overload protection for long, dependable service

Metalworking-specific outer filter that attracts more oil mist, smoke and dust generated during the metal processing, which could effect the health of the machinist, especially in closed areas of the workshop

Pleated fiber air filter is 99% effective with filtering fumes, oil mist, and water vapor based on 8 to 10 micron size particles in the air

Two-Filter system with Air Diffuser disperses outgoing air into a broader pattern

Specifications

Manufacturer	Jettools
Model	IAFS-3000
Condition	New
Stock Number	JT9-415150
Inner Filter Efficiency	12 MERV
Motor Phase	Single
Motor Power (HP)	1
Motor Voltage (V.)	1HP, 230V, 1Ph
Overall Dimensions (L x W x H) (In.)	41-13/16 x 27-3/4 x 23-3/8
Overall Height (In.)	23-3/8
Prop 65	Cancer and Reproductive Harm
Speeds	3367/2268/1654
Speeds (CFM)	3000
Timer Settings	Up to 9 Hours
Type	Air Filtration
Warranty	2 Year
Gross Weight	150.0
Net weight	135.0
Sound Rating (Db.)	75/73/69
Timer Settings (hrs)	Up to 9 hours
Inner Filter Efficiency (MERV)	12
Motor (HP)	1HP, 230V, 1Ph
Outer Filter Efficiency (MERV)	8

Documents

iafs-3000_industrial_air_filtration_system-2c_3000_cfm-2c_1hp-2c_1ph_230v-pdf
