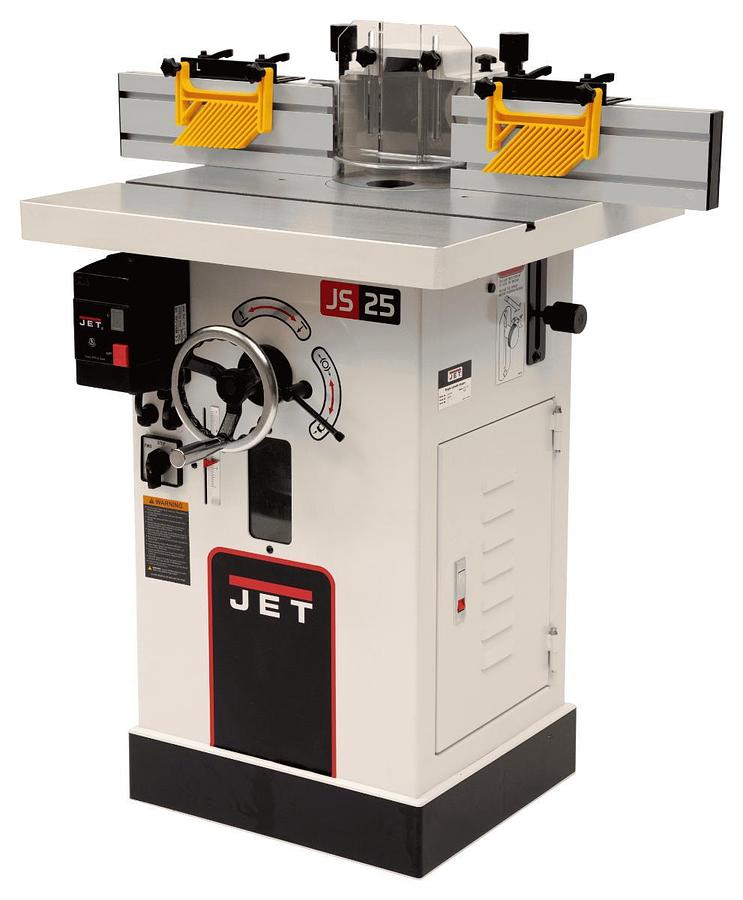

JWS-25X, JET Shaper, 3HP, 1PH

or
Call (954)444-4004

Description

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4” dust port.


  • Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Reversible spindle speeds for diverse shaping jobs
  • Spindle lock for safe and easy cutter set up
  • Starting Pins for irregular shaping
  • Two-speeds let you select the best speed and torque for different cutter diameters
  • V-belt transfers maximum power to the spindle

    • Show All

    Specifications

    ManufacturerJettools
    ModelJWS-25X
    ConditionNew
    Stock NumberJT9-708309
    Dust Collection Minimum CFM Required (CFM)600
    Dust Port Outside Diameter (In.)4
    Motor Amps16
    Motor Power (HP)3
    Motor Voltage (V.)230
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Recommended Circuit Size (Amps.)30
    Spindle Travel (In.)3-1/2
    Table Height from Floor (In.)33
    Table Inserts (In.)2
    Table Opening Diameter (In.)6-9/32
    Table Size (L x W) (In.)25-1/2 x 25
    Warranty5 Year
    Gross Weight381.0
    Net weight331.0
