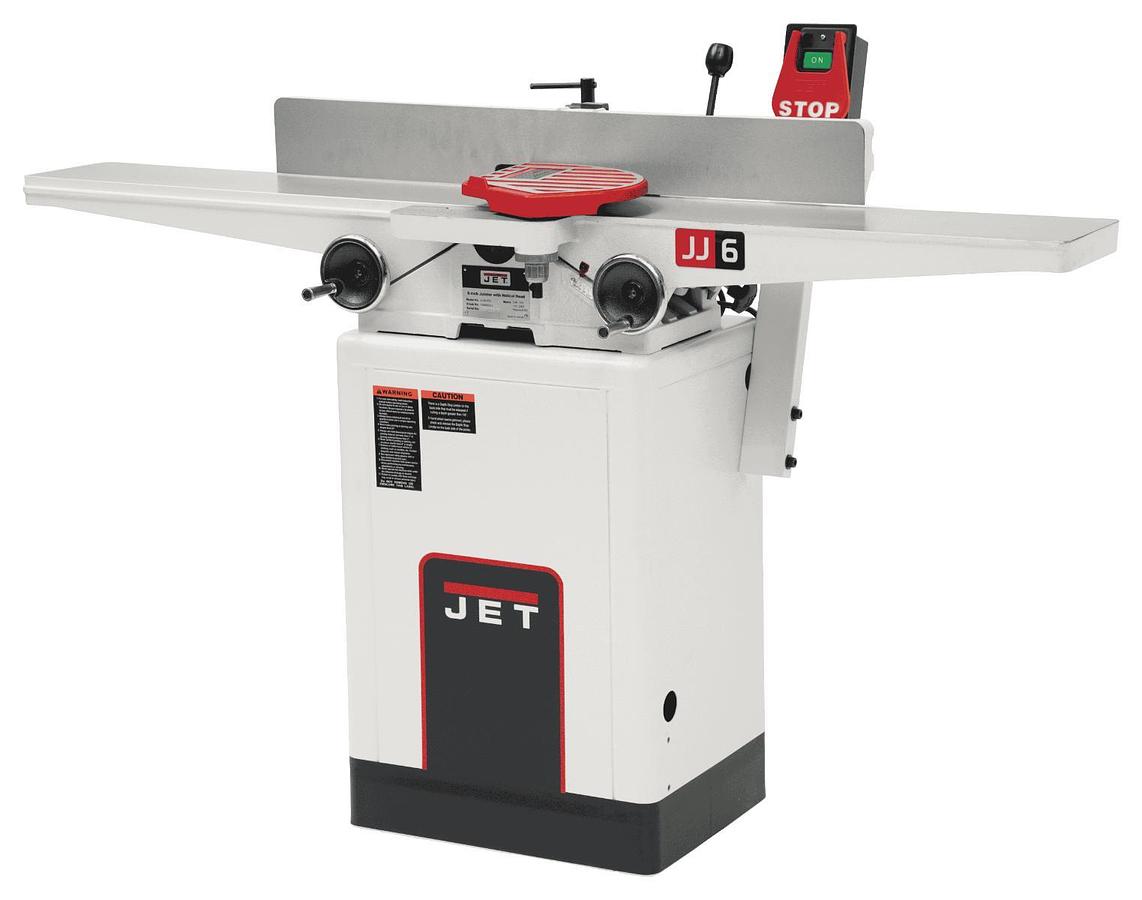

6" Long Bed Wood Jointer with Helical Head Kit (JJ-6HHDX)

or
Call (954)444-4004

Description

Any serious woodworker knows that square and flat stock is the key to producing fine work, so it’s time to skip the hand tools and graduate to the JJ-6HHDX 6” long bed jointer. This beast boasts a helical insert cutterhead with staggered carbide inserts yet runs quietly and smoothly. Its exclusive front-mounted table adjustment handwheels make quick, easy and accurate corrections. Extra-long heavy-duty cast iron infeed and outfeed tables with precision-machined finish allow jointing of longer boards without tipping. Best of all, it comes with JET’s industry-leading customer service professionals standing by to assist from setup to output.


  • Built-in dust chute with 4" port connects to your collection system for efficient dust/chip disposal
  • Center fence controls are conveniently mounted to allow quick adjustments
  • Exclusive front-mounted table adjustment handwheels make quick, easy, and accurate corrections
  • Extra-long heavy-duty cast iron infeed and outfeed tables with precision machined finish
  • Heavy-duty cast iron infeed and outfeed tables with precision machined finish
  • Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
  • Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
  • Industrial push-button controls are conveniently placed for easy access
  • Powerful 1HP motor easily handles the toughest jointing tasks
  • Two-way tilting fence with positive stops at 45° and 90° to handle bevel operations

    • Show All

    Specifications

    ManufacturerJettools
    ModelJJ-6HHDX
    ConditionNew
    Stock NumberJT9-708466DXK
    Warranty5 Year
    Type of CutterheadHelical Head
    Cutterhead Diameter (In.)2-1/2
    Maximum Cutting Depth (In.)1/8"
    Cutterhead Speed (RPM)6000.0000
    Dust Collection Minimum CFM Required (CFM)350
    Dust Port Outside Diameter (In.)4
    Outfeed Table Length (In.)27-3/8
    Number of Knives27
    Motor Power (HP)1
    Motor Voltage (V.)115/230
    Prewired Voltage (V.)115
    Motor Phase1
    Motor Amps13/6.5
    Table Height from Floor (In.)31-1/4
    Table Size (L x W) (In.)56 x 7-3/8
    Gross Weight260.0
    Net weight240.0
    Prop 65Cancer and Reproductive Harm
